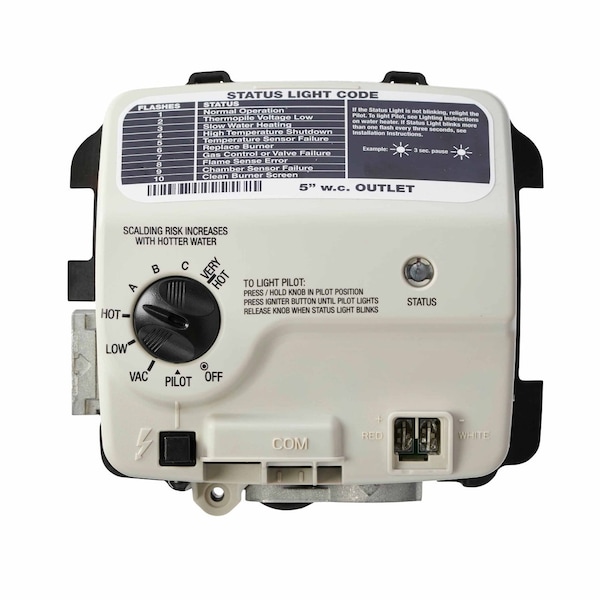

Gas Valve, NG, Manual, Piezo, 350 to 850mV DC, 0 in to 14 in wc, Standard Opening, 1/2 in Inlet Size
| BtuH Capacity | 70,000 BtuH |
|---|---|
| Coil Volts | 350 to 850mV DC |
| Gas Type | NG |
| Ignition Type | Manual, Piezo |
| Inlet Size | 1/2 in |
| Outlet Size | 1/2 in |
| Valve Type | Standard Opening |
| For Use With | 2 in Insulation AO Smith Water Heaters |
| Ambient Temp. Range | 32 to 150 deg F |
| Item | Gas Valve |
| LP Conversion Kit | No |
| Pressure Setting Range | 0 in to 14 in wc |
| Flow Direction | 90 Degrees |
| Includes | Control |
| Max. Inlet Pressure | 0.5 psi |
| Standards | ANSI Z21.20, ANSI Z21.23, ANSI Z21.78, ANSI Z21.87, CAN/CSA-C22.2 No. 199-M89, CAN1-6.6-M78, CSA 4.6, CSA 6.20 |
| Side Taps | No |
| Inlet Pressure Tap | No |
| Voltage | 0.85 V DC |
| Application | Hot Water Heaters |
| Includes Conversion Kit | Conversion Kit Not Included |
| Port Connection Size | 1/2 in |
| Manufacturer Series | WT8840 |
| For Media | Liquid Propane, Natural Gas |
| Includes Thermostat | Mechanical Thermostat Not Included |
| Port Connection Type | NPT |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Includes Pressure Regulator | Pressure Regulator Included |
| Operating Temperature - Minimum | 32 deg F |
| Opening Characteristic | Fast Opening |
| Includes Side Taps | Not Applicable |
| ANSI Rating | ANSI Z21.20, ANSI Z21.23, ANSI Z21.78, ANSI Z21.87 |
| Includes Pressure Tap | Pressure Tap Inlet Included, Pressure Tap Outlet Included |
| Pilot Type | Standing Pilot |
| Reducer Bushings Included | None |
| Includes On/Off Switch | Not Applicable |
| Valve Design | Not Applicable |
| Installation Orientation | Vertical |
| Port Connection Gender | Female |
| Sensing Type | Flame Sensor |
| Operating Temperature - Maximum | 150 deg F |
| Heating Capacity - Maximum | 85,000 BtuH |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
