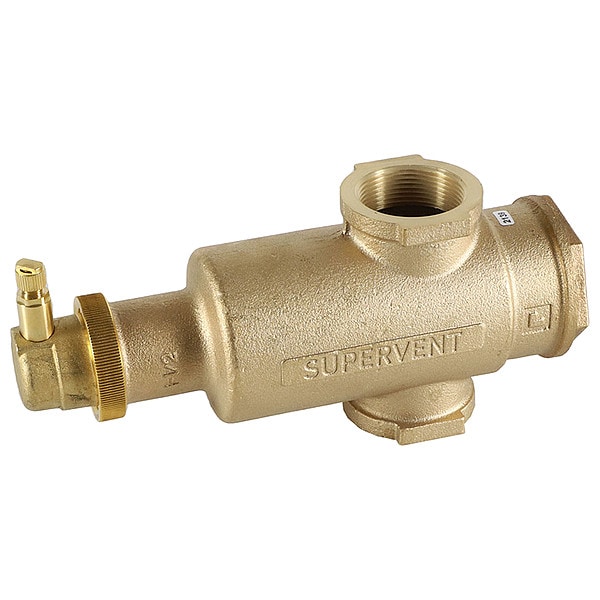

Hydronic Air Vent, 1 1/2 FNPT
| Item | Air Eliminator |
|---|---|
| Type | Automatic |
| (F)NPT Connections (In.) | 1 1/2 in |
| Max. Pressure (PSI) | 125 |
| Material | Bronze |
| Connection | 1-1/2 in (F)NPT |
| Max. Temp. (F) | 240 |
| Overall Height (In.) | 9-11/16 |
| Construction | Cast |
| Application | Residential or Commercial Closed Loop Hydronic Heating or Chilled Water Systems |
| Overall Width | 3-1/8 in |
| Overall Length | 4-5/16 in |
| Air Vent Type | Float |
| Outlet Port Connection Gender | Female |
| Product Type | Air Eliminator |
| Operating Pressure - Maximum | 125 psi |
| Number of Outlet Ports | 2 |
| Outlet Port Connection Size | 1-1/2 in |
| Air Vent Connection Type | Sweat |
| Air Vent Connection Size | 1/2 in |
| Manufacturer Series | PV |
| Port Adjustability | Adjustable |
| Gasket Material | EPDM Rubber |
| Port Types Included | Expansion Tank, Inlet, Outlet |
| Inlet Port Connection Size | 1/2 in |
| Body Material | Bronze |
| Operating Temperature - Maximum | 239 deg F |
| Expansion Tank Connection Size | 1/2 in |
| Operating Temperature - Minimum | 0 deg F |
| Secondary Inlet Port Connection Size | Not Applicable |
| Inlet Port Connection Type | NPT |
| Operating Pressure - Minimum | Not Applicable |
| Allowable Pressure - Maximum | 125 psi |
| Installation Orientation | Vertical |
| Outlet Port Connection Type | Sweat |
| Expansion Tank Connection Gender | Female |
| Distance Between Inlet and Outlet Port | Not Applicable |
| Configuration | In-line |
| Release Method | Automatic |
| Float Material | Thermoplastic |
| Cap Material | Brass |
| Allowable Temperature - Minimum | 0 deg F |
| Number of Inlet Ports | 1 |
| Overall Depth | 4-5/16 in |
| Secondary Inlet Port Connection Type | Not Applicable |
| Inlet Port Connection Gender | Female |
| Secondary Inlet Port Connection Gender | Not Applicable |
| Relief Port Location | Top |
| For Media | Water |
| Expansion Tank Connection Type | NPT |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
