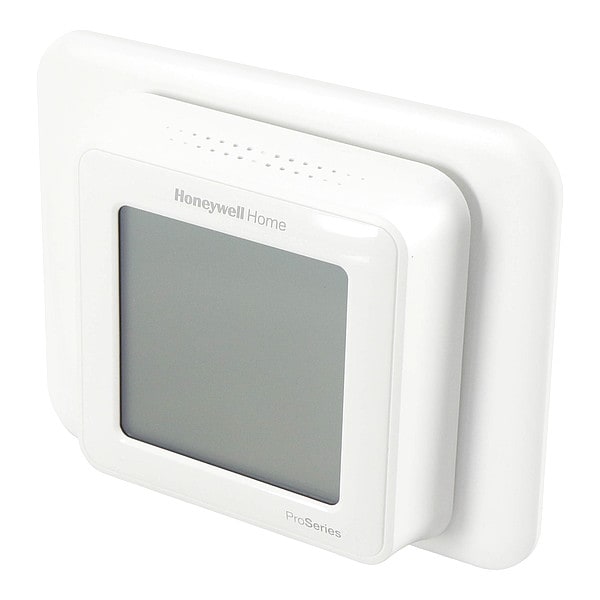

Low Voltage Thermostat, Plastic, 4 1/16" W
| Item | Low Voltage Thermostat |
|---|---|
| Voltage | 20 to 30V AC |
| Dual Transformer Compatible | Yes |
| Temperature Limiting | Yes |
| Key Pad Lockout | Yes |
| Humidification Control | No |
| Terminal Designations | C, E, G, K, L/A, O/B, R, RC, S, W, W2-AUX, Y, Y2 |
| Control Type | Touch Screen |
| Temporary Temperature Hold | No |
| Occupancy Sensor | Includes Occupancy Sensor |
| Dehumidification Control | No |
| Battery Backup | Yes |
| Standards | IC Regulations RSS-GEN Compliant |
| Low Battery Indicator | Yes |
| Display Type | Digital |
| Temporary Program Override | Yes |
| Includes | Cover Plate, Mounting Hardware, UWP Mounting System |
| Overall Height | 4-1/16 in |
| Number of Relay Outputs | 3 |
| Number of Relay Inputs | 3 |
| Differential Type | Fixed |
| Number of Heating Stages - Heat Pump System | 3 |
| Number of Heating Stages - Conventional System | 2 |
| Overall Width | 4-1/16 in |
| Fan Settings | Auto-On-Circulate |
| Temperature Adjustment | Floating, Incremental |
| Compatible Software/Device | Z-Wave App |
| Programming Capability | 5-1-1, 5-2, 7-Day |
| Thermostat Type | Low Voltage |
| Number of Cooling Stages - Conventional System | 2 |
| Operating Humidity Range | 5% to 90% RH |
| Wireless System Compatibility | Z-Wave |
| Temperature Control Range | 40 to 90 deg F |
| Frequency | 50 Hz, 60 Hz |
| Overall Depth | 1-1/8 in |
| Power Loss Settings Backup | Yes |
| Backlit Screen | Yes |
| System Settings | Heat-Off-Cool-Auto-EM Heat |
| Contact Rating | 20 to 30V AC |
| Housing Color | White |
| Temperature Differential | 1 Degrees F |
| Battery Type | AA Batteries |
| Filter Change Reminder | Yes |
| Changeover Type | Automatic |
| Wireless | Yes |
| Electrical Connection Type | Hardwired |
| Temperature Scale | Fahrenheit, Celsius |
| Maximum Temperature Control | 90 deg F |
| Compatible System Type | Heat Pump with Aux |
| Number of Cooling Stages - Heat Pump System | 2 |
| Minimum Temperature Control | 40 deg F |
| Temperature settings per day | 4 |
| Shape | Rectangle |
| Temperature Readout | Yes |
| Application | Cool, Heat |
| Phase | Not Applicable |
| Backlit Type | Touch Activated |
| Mounting Hole Diameter | Not Applicable |
| Temperature Sensitivity | Not Applicable |
| Millivolt Compatible | No |
| Pilot Duty Rating | Not Applicable |
| Network Protocol Compatibility | Not Applicable |
| External Power Source | Battery |
| Housing Type | Standard Housing |
| Required Accessories for Zoning | Not Applicable |
| Includes Batteries | Yes |
| Mounting Direction | Horizontal |
| Housing Material | Plastic |
| Number of Switches | Not Applicable |
| Includes Positive Off | Yes |
| Contact Type | Electronic |
| Occupancy Sensor Compatibility | Z-Wave Sensors |
| Smart Capabilities | Remote Control, Z-Wave Plus |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
