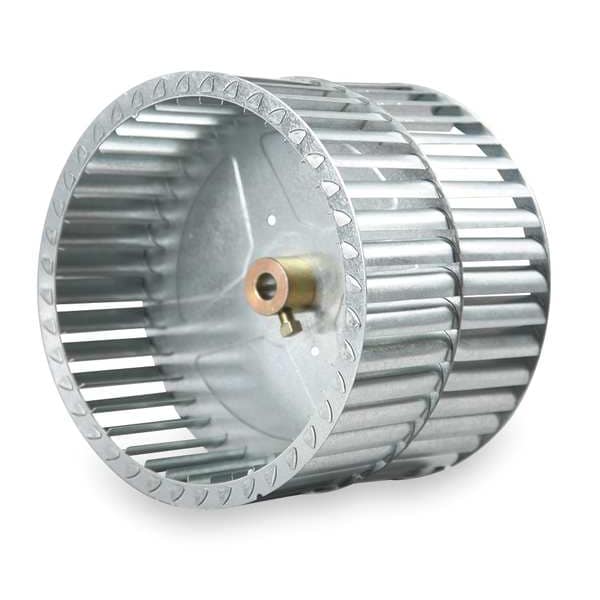

Blower Whl, Dia 6 3/4 In, Width 8 1/4 In
| Wheel Dia. (In.) | 6-3/4 |
|---|---|
| Bore Dia. (In.) | 1/2 |
| Rotation | CW Hub End |
| Wheel Width (In.) | 8-1/4 |
| Wheel Width | 8-1/4 in |
| Max. RPM | 1,700 |
| Wheel Material | Steel |
| Item | Blower Wheel |
| Type | Direct Drive, Double Inlet Forward Curve |
| Wheel Hub Position | Center |
| Number of Inlets | 2 |
| Market | Commercial, Residential |
| Includes Set Screws | Yes |
| Wheel Material Finish | Galvanized |
| Drive Type | Direct Drive |
| Wheel Construction | Tabbed |
| Bore Diameter | 1/2 in |
| Hub Type | Convex |
| Product Type | Blower Wheel |
| Application | Air Handling Units, Commercial Split and Packaged Systems, Energy Recovery Ventilators (ERV), Fan Coil Units, Food Service, Residential Furnaces, Water-Source Heat Pumps |
| Wheel Type | Forward-Curved |
| Maximum Speed | 1,700 rpm |
| Wheel Diameter | 6-3/4 in |
| Features | High Air Volume with Low Vibration |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
