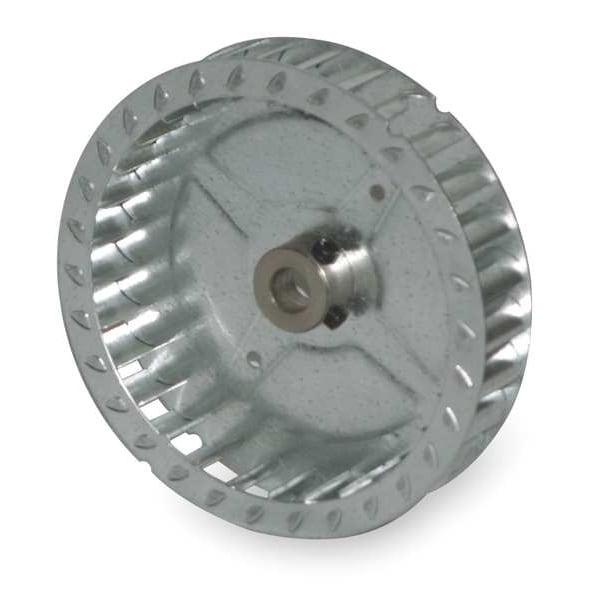

Blower Whl, Dia 6 5/16 In, Width 2 1/2 In
| Wheel Dia. (In.) | 6-5/16 |
|---|---|
| Bore Dia. (In.) | 1/2 |
| Rotation | CW Closed End |
| Wheel Width (In.) | 2-1/2 |
| Wheel Width | 2-1/2 in |
| Max. RPM | 3,625 |
| Wheel Material | Steel |
| Item | Blower Wheel |
| Type | Direct Drive, Single Inlet Forward Curve |
| Maximum Speed | 3,625 rpm |
| Number of Inlets | 1 |
| Wheel Diameter | 6-5/16 in |
| Hub Type | Convex |
| Wheel Construction | Tabbed |
| Application | Air Handling Units, Commercial Split and Packaged Systems, Energy Recovery Ventilators (ERV), Fan Coil Units, Food Service, Residential Furnaces, Water-Source Heat Pumps |
| Wheel Hub Position | Inside |
| Drive Type | Direct Drive |
| Includes Set Screws | Yes |
| Market | Commercial, Residential |
| Wheel Material Finish | Galvanized |
| Features | High Air Volume with Low Vibration |
| Bore Diameter | 1/2 in |
| Product Type | Blower Wheel |
| Wheel Type | Forward-Curved |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
