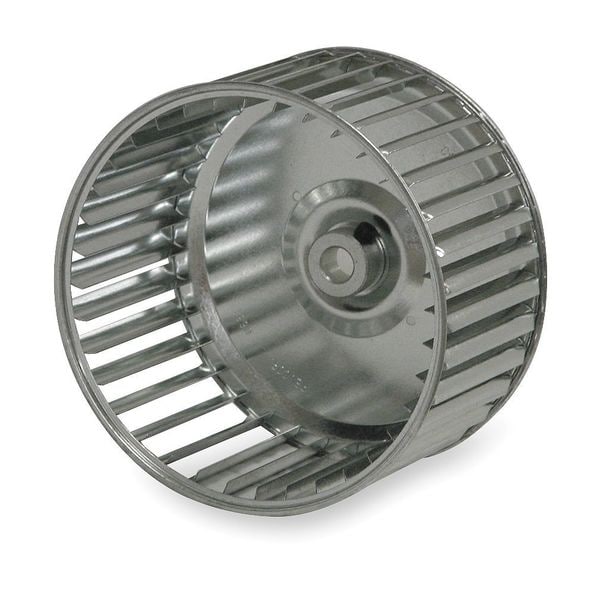

BlowerWhl, Dia 6 5/16 In, Width 2 15/16 In
| Wheel Dia. (In.) | 6-5/16 |
|---|---|
| Bore Dia. (In.) | 5/16 |
| Rotation | CW Closed End |
| Wheel Width (In.) | 2-15/16 |
| Wheel Width | 2-15/16 in |
| Max. RPM | 3,400 |
| Wheel Material | Steel |
| Item | Blower Wheel |
| Type | Direct Drive, Single Inlet Forward Curve |
| Wheel Hub Position | Inside |
| Product Type | Blower Wheel |
| Drive Type | Direct Drive |
| Includes Set Screws | Yes |
| Wheel Material Finish | Galvanized |
| Wheel Diameter | 6-5/16 in |
| Application | Air Handling Units, Blower Coil Units, Fan Coil Units, Unit Ventilators, VAV Terminal Units |
| Market | Commercial, Industrial |
| Features | High Air Volume with Low Vibration |
| Hub Type | Convex |
| Number of Inlets | 1 |
| Wheel Type | Forward-Curved |
| Maximum Speed | 3,400 rpm |
| Wheel Construction | Strip |
| Bore Diameter | 5/16 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
