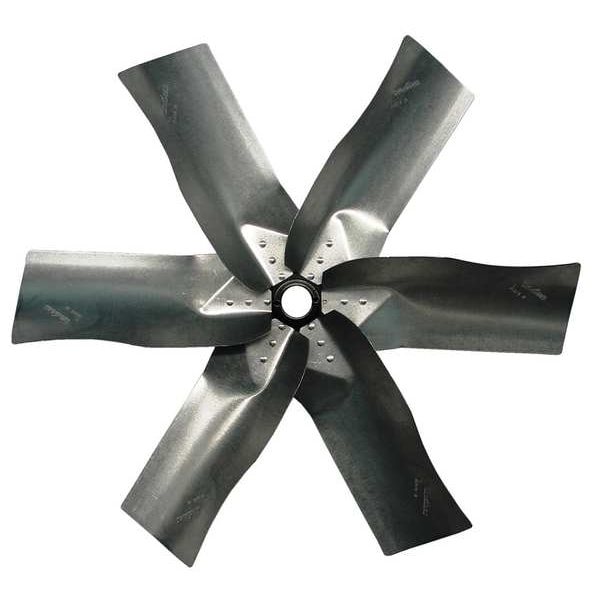

Heavy Duty Propeller, 24 In, 38 Pitch
| Propeller Dia. (In.) | 24 |
|---|---|
| Number of Blades | 6 |
| Required Motor HP | 2 3/4 |
| CFM @ 0.000-In. SP | 11,165 cfm |
| Max. RPM | 1,450 |
| Blade Height (In.) | 3-5/8 |
| For Use With | H Type Taper Lock Bushing |
| Required HP @ Higher RPM | 2 3/4 hp |
| Blade Material | Galvanized |
| Rotation | Clockwise |
| CFM @ 0.125-In. SP | 10,869 cfm |
| Blade Width (In.) | 6-1/4 |
| RPM Low | 850 RPM |
| Pitch (Deg.) | 38 |
| Type | Commercial, Heavy-Duty, Industrial |
| Item | Fan Blade |
| RPM High | 1,450 RPM |
| CFM @ 0.250-In. SP | 10,556 cfm |
| CFM @ 0.500-In. SP | 9,856 cfm |
| Required HP @ Lower RPM | 1/2 hp |
| CFM @ 0.375-In. SP | 10,220 cfm |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
