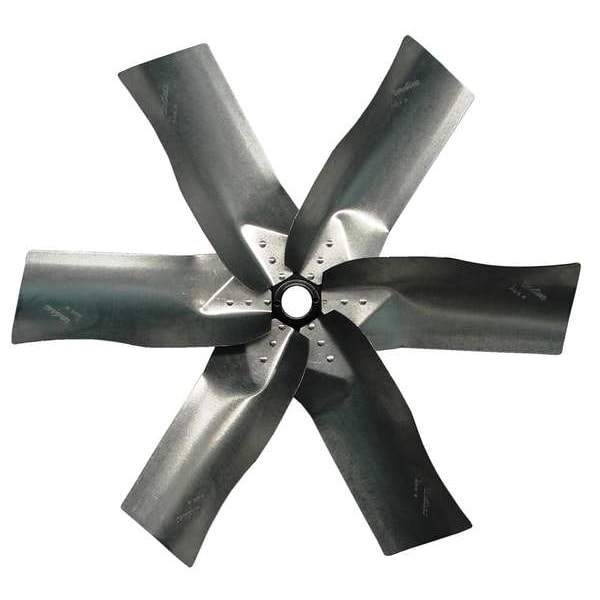

Heavy Duty Propeller, 30 In, 38 Pitch
| Propeller Dia. (In.) | 30 |
|---|---|
| Number of Blades | 6 |
| Required Motor HP | 3 1/4 |
| CFM @ 0.000-In. SP | 16,701 cfm |
| Max. RPM | 1,140 |
| CFM @ 0.500-In. SP | 14,064 cfm |
| Blade Width (In.) | 6-3/8 |
| Pitch (Deg.) | 38 |
| RPM High | 1,140 RPM |
| CFM @ 0.125-In. SP | 16,164 cfm |
| CFM @ 0.250-In. SP | 15,547 cfm |
| Blade Height (In.) | 3-5/8 |
| RPM Low | 720 RPM |
| Required HP @ Higher RPM | 3 1/4 hp |
| For Use With | H Type Taper Lock Bushing |
| CFM @ 0.375-In. SP | 14,831 cfm |
| Blade Material | Galvanized |
| Type | Commercial, Heavy-Duty, Industrial |
| Rotation | Clockwise |
| Item | Fan Blade |
| Required HP @ Lower RPM | 1 1/2 hp |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
