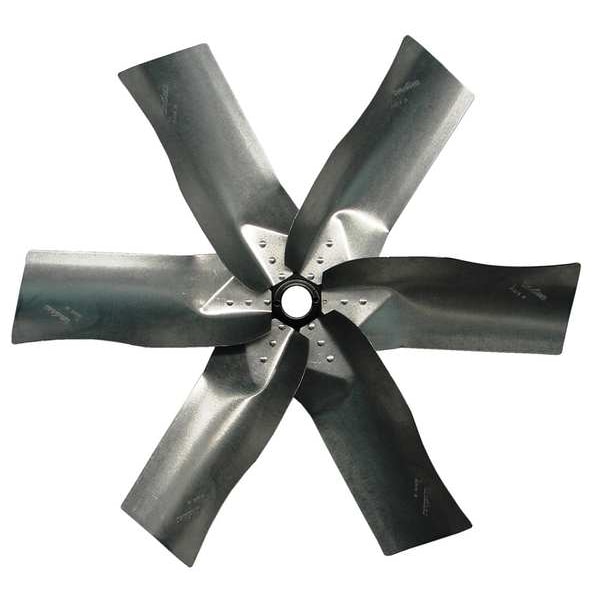

Heavy Duty Propeller, 36 In, 38 Pitch
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Propeller Dia. (In.) | 36 |
| Number of Blades | 6 |
| Required Motor HP | 3 1/2 |
| RPM High | 850 RPM |
| Blade Height (In.) | 5-1/4 |
| Pitch (Deg.) | 38 |
| CFM @ 0.375-In. SP | 18,544 cfm |
| Required HP @ Higher RPM | 3 1/2 hp |
| Max. RPM | 850 RPM |
| For Use With | H Type Taper Lock Bushing |
| Required HP @ Lower RPM | 3/4 hp |
| CFM @ 0.000-In. SP | 21,250 cfm |
| Item | Fan Blade |
| RPM Low | 500 RPM |
| CFM @ 0.250-In. SP | 19,602 cfm |
| Rotation | Clockwise |
| CFM @ 0.500-In. SP | 17,277 cfm |
| Blade Width (In.) | 7-1/4 |
| Type | Commercial, Heavy-Duty, Industrial |
| Blade Material | Galvanized |
| CFM @ 0.125-In. SP | 20,479 cfm |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
