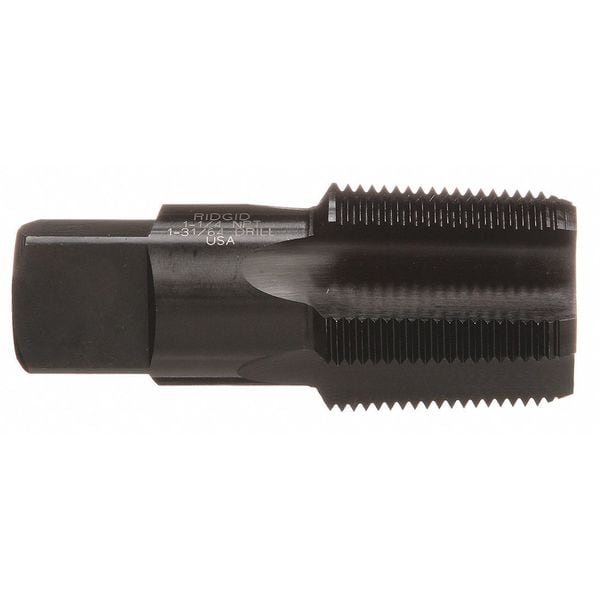

Pipe Tap, 1-1/4"-11-1/2, Taper, 4 Flutes, NPT
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 1-1/4"-11-1/2 |
| Tap Chamfer | Taper |
| Number of Flutes | 4 |
| Tap Thread Type | NPT |
| Number of Pieces | 1 |
| Pitch Diameter Limit | Not Rated |
| Tap Dimension Type | Pipe |
| Tap Size | 1-1/4" |
| Thread Direction | Right Hand |
| Standards | ANSI, ASME B1.20-1983 |
| List Number | 35,845 |
| Shank Dia. | 0.984 in |
| Tap Material | High Speed Steel |
| Thread Length | 1-3/4 in |
| Tap Style | Pipe |
| Tap Grouping | Tap |
| Tap Finish | Oxide |
| Overall Length | 4-1/16 in |
| Cutting Direction - Machining | Right Hand |
| Series | 35815 |
| Measurement System | Fractional Inch |
| Thread Size | 1-1/4"-11 1/2 |
| Helix Angle | 0 deg |
| Threads per Inch | 11.5 |
| 75% Thread Drill Size | 1.4844 in |
| Spiral Direction | Right Hand |
| Drill Bit Size | 1-31/64 in |
| Thread Standard | NPT |
| Extended Neck | Yes |
| Size | 1-1/4" |
| Package Quantity | 1 |
