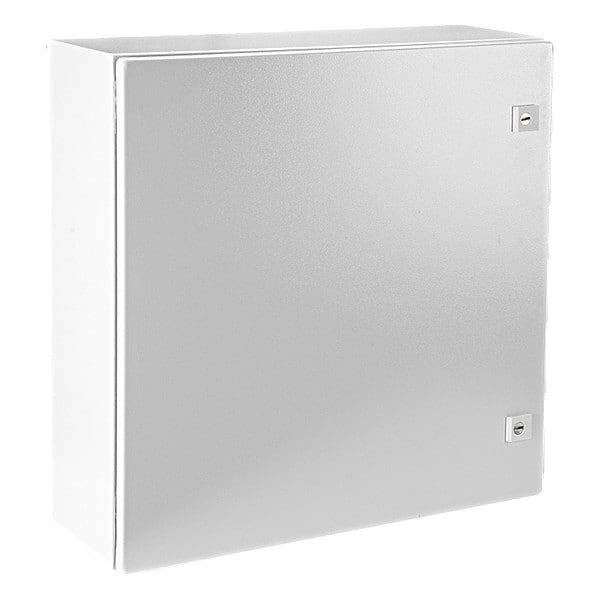

1/4 Turn Latch Electrical Enclosures, 19.70 in H, 8.30 in D, 20 in W, 1, 12, 3R, 4, Steel
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 19.7 in |
| Nominal Depth | 8.3 in |
| NEMA Enclosure Rating | 12, 4, 3R, 1 |
| Enclosure Material | Steel |
| Closure Method | 1/4 Turn Latch |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Light Gray |
| Finish | Powder Coated |
| Mounting | Wall |
| Cover Style | Solid |
| Includes | Door, Mounting Plate |
| Metal Gauge | 16 ga |
| Interior Panel | Included |
| IP Rating | IP66 |
| Enclosure Cover Type | Hinged |
| Usable Opening Depth | 7.27 in |
| Solid / Clear Cover | Solid |
| Standards | UL/cUL Listed |
| Gasket | Polyurethane |
| Enclosure Cover Features | 130 Degrees Hinge, Screwdriver Insert |
| Series | WM |
| Enclosure NEMA Rating | NEMA 3R, 4, 12 |
| Material of Enclosure | Carbon Steel |
| Body Material Thickness | 0.06 in |
| Compatible Panel Model Number | 5050438 |
| Hazardous Location Specification | Not Applicable |
| Environment - MERCH | Washdown |
| Includes Knockouts | Knockouts Not Included |
| Gasket Material | Polyurethane |
| Package Quantity | 1 |
