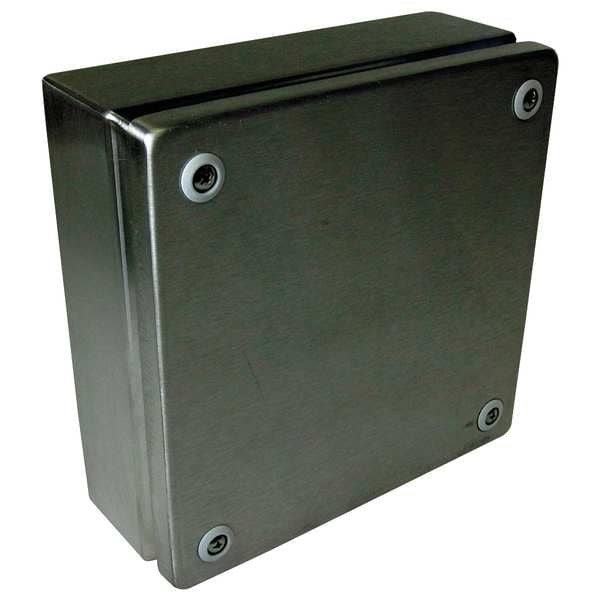

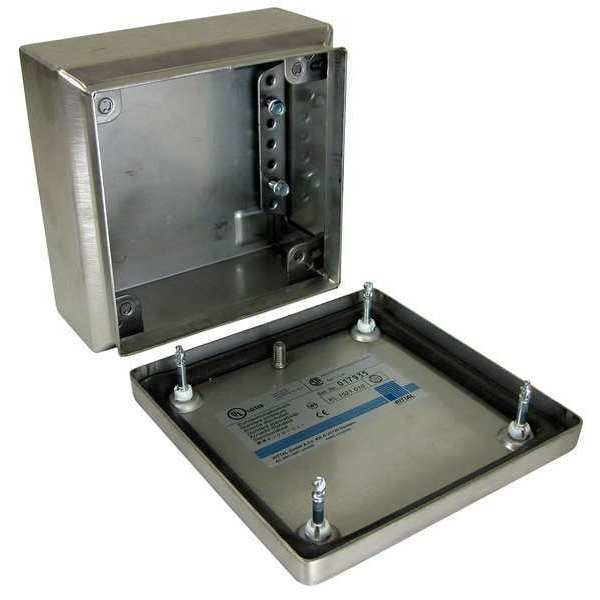

304 Stainless Steel Electrical Enclosures, 7.90 in H, 3.10 in D, 8 in W, NEMA 4X, 12, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 8 in |
| Nominal Height | 7.9 in |
| Nominal Depth | 3.1 in |
| Enclosure NEMA Rating | NEMA 4X, 12 |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Brushed |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Interior Panel | Mfr. No. 1594000 |
| IP Rating | IP66 |
| Metal Gauge | 18 ga |
| Series | KL |
| Gasket | Polyurethane |
| Includes | Cover, Plastic Bushes, Quick-Release Fastener |
| Usable Opening Depth | 2.47 in |
| Standards | Bureau Veritas, DNV-GL, ETIM 7.0 EC000261, UL/cUL Listed |
| Enclosure Cover Features | Screw Latch |
| Enclosure Material | Stainless Steel |
| Protection category IP to EN 60 529 | IP 66 |
| IK code | IK08 |
| Compatible Panel Model Number | 1562700 |
| NEMA Enclosure Rating | 4X |
| Hazardous Location Specification | Not Applicable |
| Gasket Material | Polyurethane |
| Cover Style | Solid |
| Includes Knockouts | Knockouts Not Included |
| Cover Material Thickness | 1.25 mm |
| Body Material Thickness | 1.25 mm |
| Cover Closure Type | Screw On |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Package Quantity | 1 |
