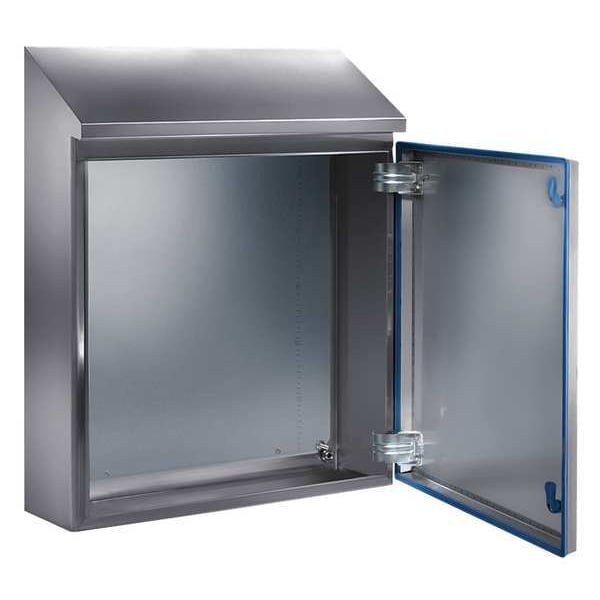

316 Stainless Steel Electrical Enclosures, 41 in H, 12 in D, 32 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 32 in |
| Nominal Height | 41 in |
| Nominal Depth | 12 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 316 Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Brushed |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Series | HD |
| Includes | Fitted Seal, Mounting Plate |
| Interior Panel | Included |
| Enclosure Cover Features | Concealed Hinge, Hygienic Lock Inserts |
| Standards | ETIM 7.0 EC000261, FDA Guideline 21 CFR 177.2600, UL/cUL Listed |
| IP Rating | IP66, IPX9 |
| Metal Gauge | 14 ga |
| Gasket | Silicone |
| Usable Opening Depth | 11.02 in |
| Enclosure Material | Stainless Steel |
| Protection category IP to IEC 60 529 | IP 66 |
| IK code | IK08 |
| Cover Closure Type | Hinged |
| Body Material Thickness | 1.5 mm |
| Cover Style | Solid |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Hazardous Location Specification | Not Applicable |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 1, 3, 3X |
| Compatible Panel Model Number | 5051386 |
| Gasket Material | Silicone |
| Package Quantity | 1 |
