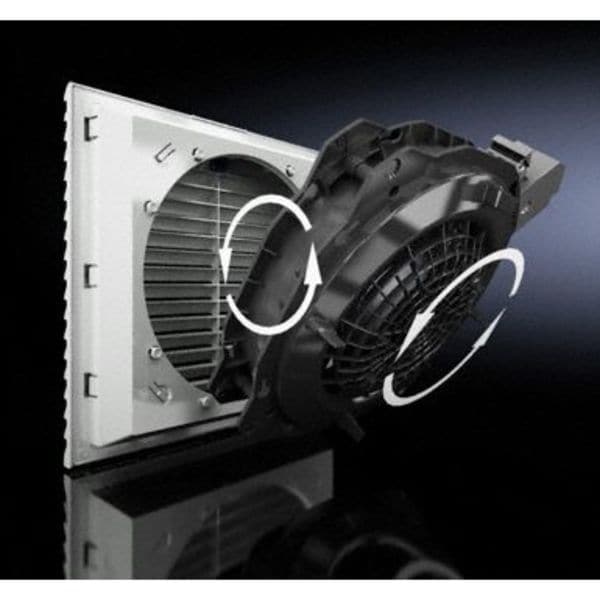

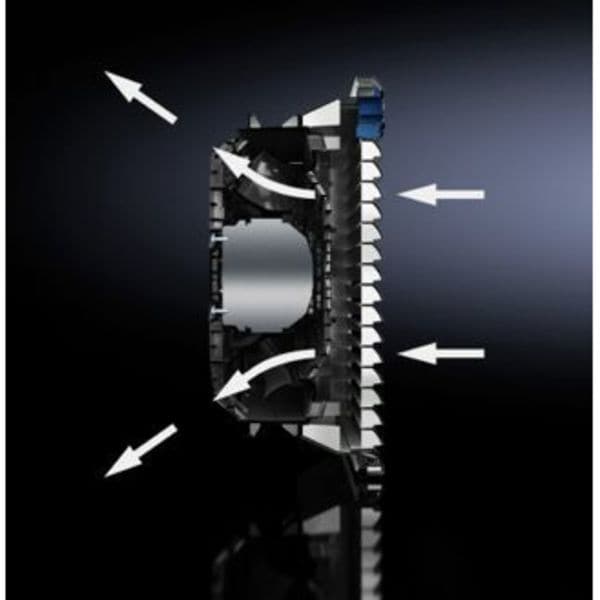

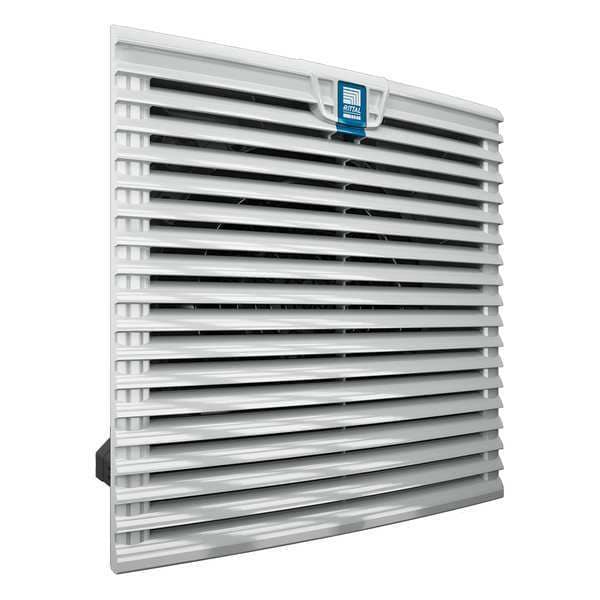

Axial Fan, Square, 115V AC, 1 Phase, PBT Plastic, 12 13/16 in W.
| Blade Material | Steel |
|---|---|
| CFM @ 0.000-In. SP | 353 cfm |
| Depth | 5-11/16 in |
| Height | 12-13/16 in |
| Housing Material | PBT Plastic |
| Phase | 1 |
| Shape | Square |
| Watts | 100/145 W |
| Width | 12-13/16 in |

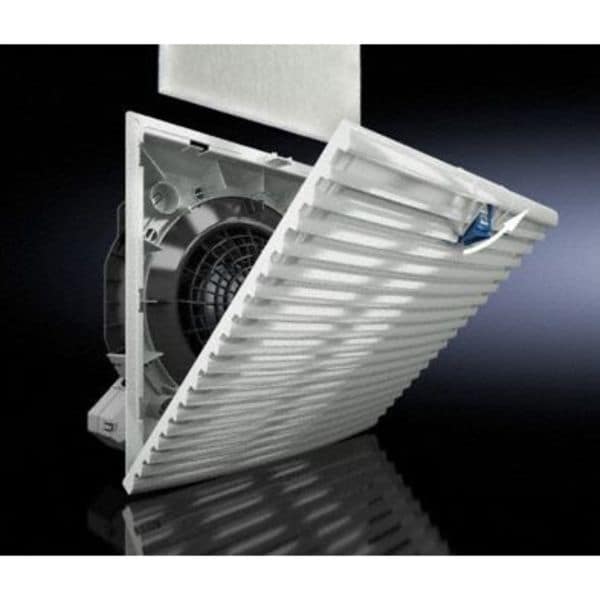

| Includes | Complete Unit Ready for Connection Including Filter Mat |
| Voltage | 115V AC |
| Fan Width | 12-51/64 in |
| Electrical Connection - Fans | Terminals |
| Electrical Connections | Terminals |
| Fan Shape | Square |
| Amps | 0.9/1.25 A |
| dBA | 65/68 |
| Hz | 50/60 Hz |
| Fan Watts | 100/145 |
| Requires | Hard Wiring |
| Mounting Eye O.C. - Fans | 11-1/2 in |
| Fan Item | Axial Fan |
| Standards | UL and CUL Recognized, CE, Type 12 Rated, IP 54 (Standard), CURus, UR, CSA, CCC, EN 60 529/09.2000 |
| Bearings | Ball |
| Fan Height | 12-51/64 in |
| Item | Axial Fan |
| Mounting Eye O.C. | 11-1/2 in |
| Fan Width | 12-51/64 in |
| Mounting Position | Vertical or Horizontal |
| Max. Ambient Temp. | 131 deg F |
| Housing Finish | Light Gray (RAL 7035) |
| Fan Depth | 5-45/64 in |
| Thermal Protection | Impedance |
| Motor Insulation | Class B |
| Fan Voltage | 115VAC |
| Fan dBA | 65/68 |
| IP Rating | IP54 |
| Bearing Type | Ball |
| Environmental Applications | Equipment Cooling |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
