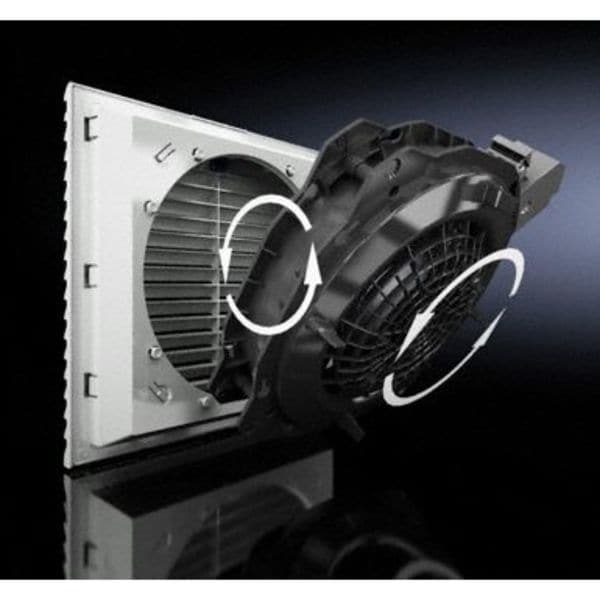

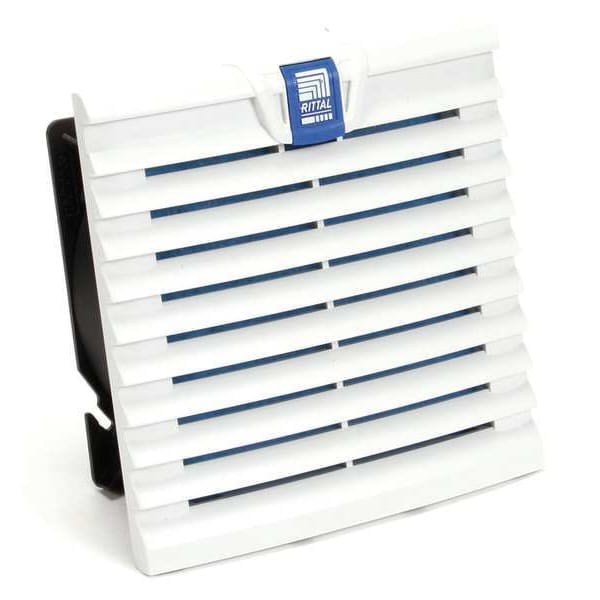

Axial Fan, Square, 230V AC, 1 Phase, PBT Plastic, 5 13/16 in W.
| Blade Material | Steel |
|---|---|
| CFM @ 0.000-In. SP | 15 cfm |
| Depth | 2-7/8 in |
| Height | 5-13/16 in |
| Housing Material | PBT Plastic |
| Phase | 1 |
| Shape | Square |
| Watts | 19/18 W |
| Width | 5-13/16 in |

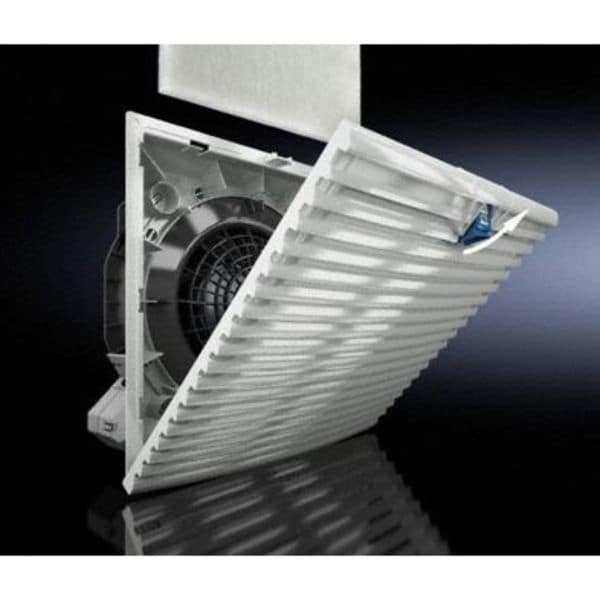

| Includes | Complete Unit Ready for Connection Including Filter Mat |
| Voltage | 230V AC |
| Mounting Position | Vertical or Horizontal |
| Mounting Eye O.C. - Fans | 4-7/8 in |
| Fan Voltage | 230VAC |
| Fan Watts | 18.0/19.0 |
| Hz | 50/60 Hz |
| Bearings | Ball |
| Amps | 0.12/0.11 A |
| Fan dBA | 46/49 |
| Housing Finish | Light Gray (RAL 7035) |
| Thermal Protection | Impedance |
| Motor Type | Self Starting Shaded Pole |
| Item | Axial Fan |
| Fan Depth | 2-29/32 in |
| dBA | 46/49 |
| Max. Ambient Temp. | 131 deg F |
| Mounting Eye O.C. | 4-7/8 in |
| Standards | UL and CUL Recognized, CE, Type 12 Rated, IP 54 (Standard), NEMA 12, CURus, UR, CSA, CCC |
| Fan Shape | Square |
| Fan Width | 5-51/64 in |
| Electrical Connections | Terminals |
| Fan Height | 5-51/64 in |
| Fan Item | Axial Fan |
| Electrical Connection - Fans | Terminals |
| Fan Width | 5-51/64 in |
| Requires | Hard Wiring |
| Motor Insulation | Class B |
| IP Rating | IP54 |
| Environmental Applications | Equipment Cooling |
| Fan Mounting Location | Enclosure |
| Bearing Type | Ball |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
