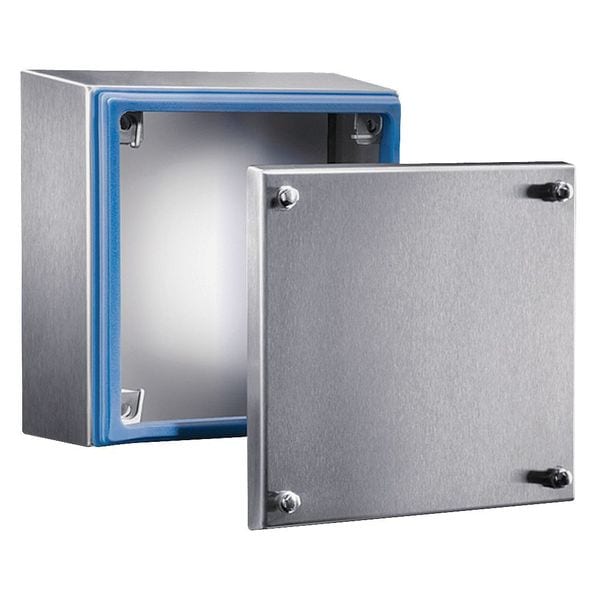

Captive Screws Electrical Enclosures, 8 in H, 5 in D, 16 in W, 1, 12, 13, 3, 3X, 4, 4X
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 16 in |
| Nominal Height | 8 in |
| Nominal Depth | 5 in |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 1, 3, 3X |
| Enclosure Material | Stainless Steel |
| Closure Method | Screws |
| Cover Closure Type | Screw On |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Brushed |
| Mounting | Wall |
| Cover Style | Solid |
| Solid / Clear Cover | Solid |
| Standards | ETIM 7.0 EC002713, FDA Guideline 21 CFR 177.2600, UL/cUL Listed |
| Includes | Mounting Bracket, Seal and Screw Plug |
| Material of Enclosure | 304 Stainless Steel |
| Metal Gauge | 16 ga |
| Enclosure NEMA Rating | NEMA 4X |
| Gasket | Silicone |
| Enclosure Cover Features | Screw Latch |
| Enclosure Cover Type | Screw On |
| IP Rating | IP66, IPX9 |
| Series | HD |
| Usable Opening Depth | 4.61 in |
| IK code | IK08 |
| Protection category IP to IEC 60 529 | IP 66 |
| Gasket Material | Silicone |
| Body Material Thickness | 16 ga |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Hazardous Location Specification | Not Applicable |
| Includes Knockouts | Knockouts Not Included |
| Compatible Panel Model Number | Not Applicable |
| Package Quantity | 1 |
