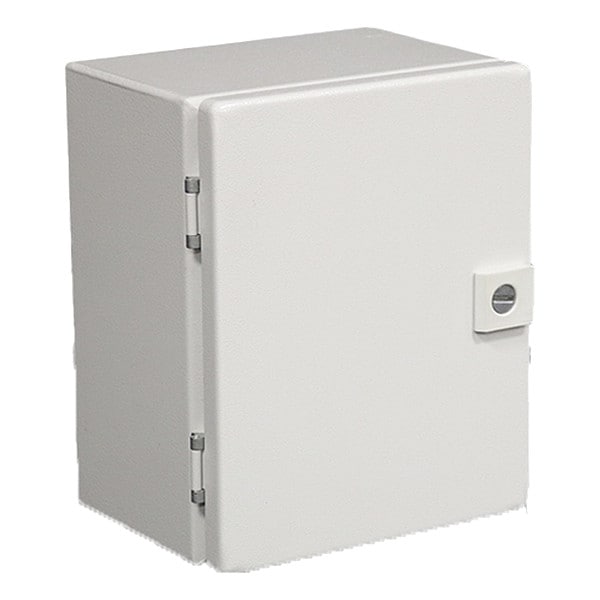

Carbon Steel Electrical Enclosures, 5.90 in H, 2 in D, 4 in W, NEMA 3R, 4, 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 4 in |
| Nominal Height | 5.9 in |
| Nominal Depth | 2 in |
| Enclosure NEMA Rating | NEMA 3R, 4, 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Light Gray |
| Finish | Powder Coated |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Metal Gauge | 16 ga |
| Usable Opening Depth | 3.14 in |
| Enclosure Cover Features | 180 Degrees Hinge, Screwdriver Insert |
| IP Rating | IP66 |
| Interior Panel | Included |
| Includes | 180 Degrees Hinge, Door, Mounting Plate |
| Series | JB |
| Gasket | Polyurethane |
| Standards | UL Listed |
| Enclosure Material | Steel |
| Protection category IP to IEC 60 529 | IP 66 |
| Body Material Thickness | 0.06 in |
| NEMA Enclosure Rating | 4 |
| Cover Style | Solid |
| Environment - MERCH | Washdown |
| Compatible Panel Model Number | Not Applicable |
| Cover Closure Type | Hinged |
| Hazardous Location Specification | Not Applicable |
| Includes Knockouts | Knockouts Not Included |
| Gasket Material | Polyurethane |
| Package Quantity | 1 |
