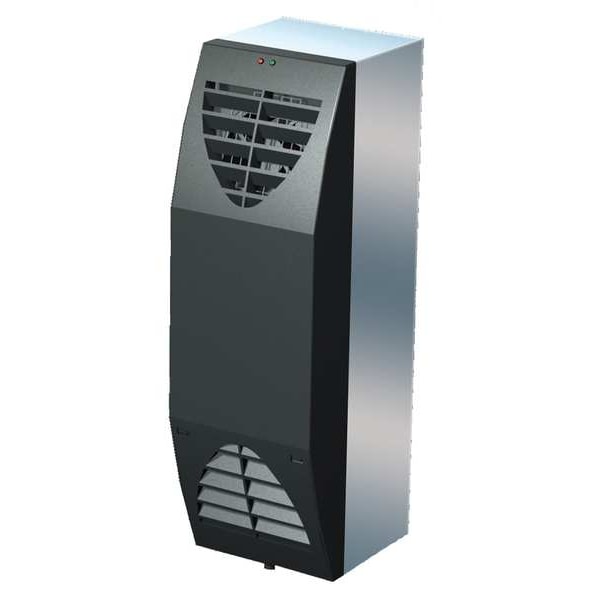

Enclosure AC, Wall Mount, 341 BtuH
| Cooling Capacity | 341 BtuH |
|---|---|
| Amps | 40 |
| Phase | Single |
| NEMA Enclosure Type | 12 |
| Housing Material | Anodized Aluminum |
| Mounting | Wall Mount |
| Height | 16 in |
| Width | 5 in |
| Depth | 6 in |
| Voltage | 24V DC |
| Standards | EAC |
| Cooling Method | Thermoelectric |
| Housing Color | Slate Gray |
| Control Type | PID Controller |
| Wiring Method | Fully Wired |
| Includes | Drilling Template, Filter Mat, Mounting Accessories, Thermoelectric Climate Control Unit, USB Cable A/B |
| Item | Enclosure Air Conditioner |
| Product Type | Thermoelectric Cooler |
| Operation Mode | Cooling, Heating |
| Refrigerant Type | Not Applicable |
| Operating Voltage | 24 V |
| Cooling Setpoint - Minimum | 5 deg C |
| Current | 4.5 A |
| Heating Setpoint - Minimum | -10 Degrees C |
| Operating Temperature - Maximum | 140 deg F |
| Air Consumption | Not Applicable |
| Power Consumption | 80 W |
| NEMA Enclosure Rating | 12 |
| Heating Setpoint - Maximum | 20 Degrees C |
| Overall Height | 15-3/4 in |
| Overall Width | 4.92 in |
| Overall Depth | 6.1 in |
| Cooling Capacity - Maximum | 273 BtuH |
| Cooling Setpoint - Maximum | 55 deg C |
| Operating Temperature - Minimum | -22 deg F |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
