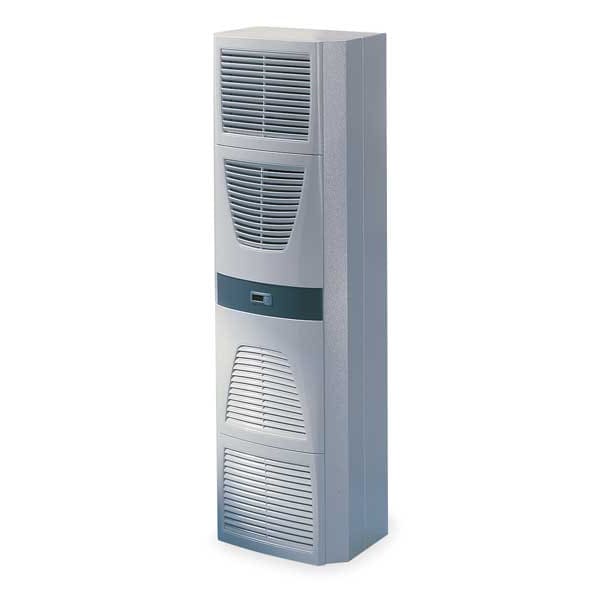

Enclosure AC, Wall Mount, 8026 BtuH
| Cooling Capacity | 8,026 BtuH |
|---|---|
| Amps | 2.8/3.3 |
| Phase | Three |
| Hz | 50/60 |
| NEMA Enclosure Type | 12 |
| Housing Material | Sheet Steel |
| Mounting | Wall Mount |
| Height | 62 in |
| Width | 16 in |
| Depth | 11 in |
| Voltage | 400/460 |
| Standards | CSA, cUL, cUR, EAC, FTTA, UL, UR |
| Cooling Method | Refrigerant |
| Housing Color | Slate Gray |
| Refrigerant | R134a |
| Control Type | Comfort Controller |
| Wiring Method | Fully Wired |
| Item | Enclosure Air Conditioner |
| Includes | Assembly Parts, Condenser with Hydrophobic RiNano Coating, Drilling Template |
| Product Type | Cooling Unit |
| Operation Mode | Cooling Only |
| Refrigerant Type | R134a |
| Overall Depth | 11.61 in |
| Operating Voltage | 400/460V |
| Power Consumption | 2.2 kW |
| Overall Width | 15-3/4 in |
| Cooling Setpoint - Minimum | 68 deg F |
| Operating Temperature - Maximum | 131 deg F |
| Cooling Setpoint - Maximum | 131 deg F |
| NEMA Enclosure Rating | 12 |
| Overall Height | 62.21 in |
| Frequency | 50/60 Hz |
| Cooling Capacity - Maximum | 7,677 BtuH |
| Current | 2.2/2.2 A |
| Air Consumption | Not Applicable |
| Operating Temperature - Minimum | 50 deg F |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
