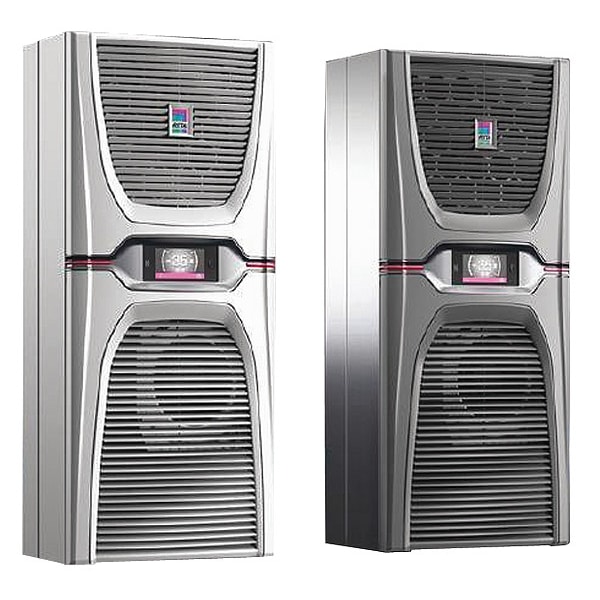

Enclosure Air Conditioner, Wall Mount
| Cooling Capacity | 9,553 BtuH |
|---|---|
| Phase | Single, Three |
| Hz | 50/60 |
| NEMA Enclosure Type | 12 |
| Housing Material | Sheet Steel |
| Mounting | Wall Mount |
| Height | 63 in |
| Width | 18 in |
| Depth | 12 in |
| Voltage | 110-240/380-480V AC |
| Standards | cUL, EAC, FTTA, IEC CB, UL |
| Cooling Method | Refrigerant |
| Housing Color | Slate Gray |
| Refrigerant | R134a |
| Control Type | Electric Controller |
| Wiring Method | Fully Wired |
| Includes | Assembly Parts, Condenser with Hydrophobic RiNano Coating |
| Refrigerant Type | R134a |
| Operation Mode | Cooling Only |
| Item | Enclosure Air Conditioner |
| Product Type | Cooling Unit |
| NEMA Enclosure Rating | 12, 3R |
| Operating Temperature - Maximum | 140 deg F |
| Overall Depth | 11.58 in |
| Frequency | 50/60 Hz |
| Power Consumption | 2.6 kW |
| Overall Width | 17.72 in |
| Cooling Setpoint - Minimum | 68 deg F |
| Operating Temperature - Minimum | -4 deg F |
| Operating Voltage | 110/240V, 380/480V |
| Cooling Capacity - Maximum | 8,872 BtuH |
| Air Consumption | Not Applicable |
| Cooling Setpoint - Maximum | 122 deg F |
| Overall Height | 62.99 in |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
