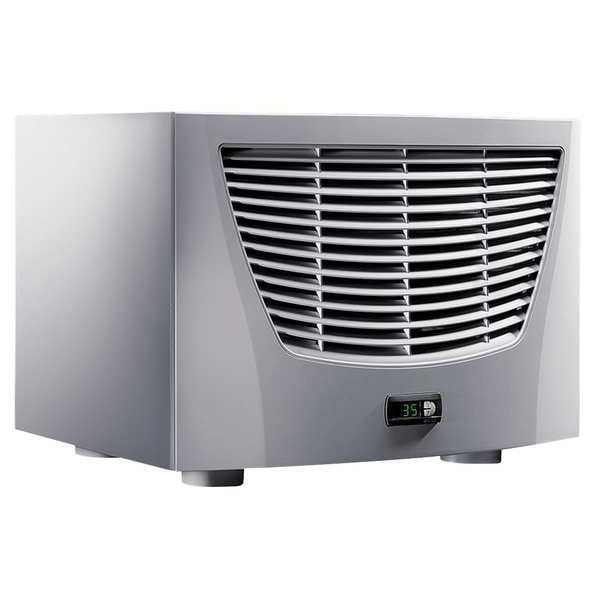

Heat Exchangr, Roofmount, 10246/13661 BtuH
| Cooling Capacity | 10,246/13,661 BtuH |
|---|---|
| Amps | 0.9 |
| Phase | Three |
| Hz | 50/60 |
| NEMA Enclosure Type | 12 |
| Housing Material | Copper/Brass |
| Mounting | Roof Mount |
| Height | 16 in |
| Width | 24 in |
| Depth | 19 in |
| Voltage | 115V AC |
| Standards | CSA, cUR, UR |
| Cooling Method | Air, Water |
| Housing Color | Slate Gray |
| Control Type | Comfort Controller |
| Wiring Method | Fully Wired |
| Includes | Assembly Parts, Drilling Template, Sealing Mat |
| Item | Heat Exchanger |
| Product Type | Heat Exchanger |
| Refrigerant Type | Not Applicable |
| Operation Mode | Cooling Only |
| Overall Width | 23-1/2 in |
| Air Consumption | Not Applicable |
| Power Consumption | 4 kW |
| Operating Temperature - Minimum | 34 deg F |
| Overall Depth | 18.7 in |
| Operating Temperature - Maximum | 158 deg F |
| Overall Height | 16.42 in |
| Cooling Capacity - Maximum | 13,661 BtuH |
| Operating Voltage | 115 V |
| Cooling Setpoint - Maximum | 131 deg F |
| Cooling Setpoint - Minimum | 68 deg F |
| Current | 0.9/1 A |
| NEMA Enclosure Rating | 12 |
| Frequency | 50/60 Hz |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
