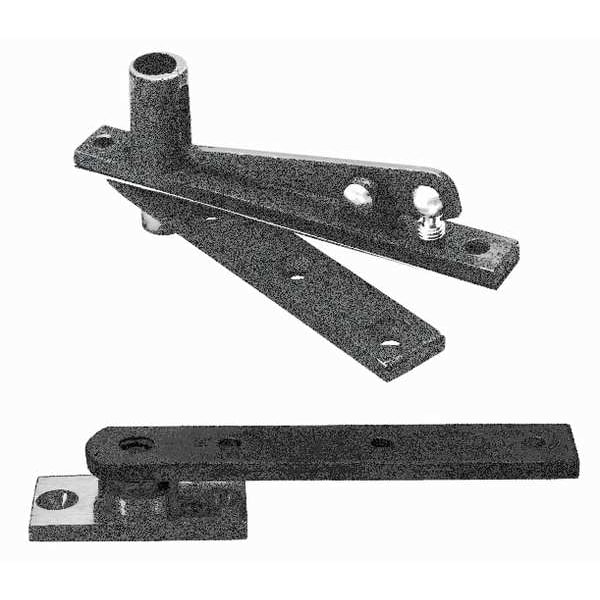

Pivot Hinge, Brass, Full Mortise Mounting, 1 in Leaf W x Satin Chrome
| Item | Pivot Hinge |
|---|---|
| Material | Brass |
| Finish | Satin Chrome |
| Load Capacity | 250 lb |
| Ligature Resistant | No |
| Range of Motion | 180 deg |
| Orientation | Non Handed |
| Mounting | Full Mortise |
| Bearing Type | Bronze |
| Holes per Leaf | 3 |
| Frame Leaf Width | 1 in |
| Frame Leaf Thickness | 0.281 in |
| Door Leaf Width | 1 in |
| Door Leaf Thickness | 0.281 in |
| Pin Material | Hardened Steel |
| Hardware | Included |
| Holes | With |
| Corners | Square |
| Features | Center Hung Pivot |
| Pin Type | Nonremovable |
| Standards | ANSI NO:, BHMA C07321 |
| Required Door Thickness | 1 3/4 in |
| Range of Motion - Maximum | 180 deg |
| Corner Type | Square |
| Number of Holes per Leaf | 3 |
| Mounting Style | Full Mortise |
| Includes Holes | Holes Included |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Includes Hardware | Hardware Included |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
