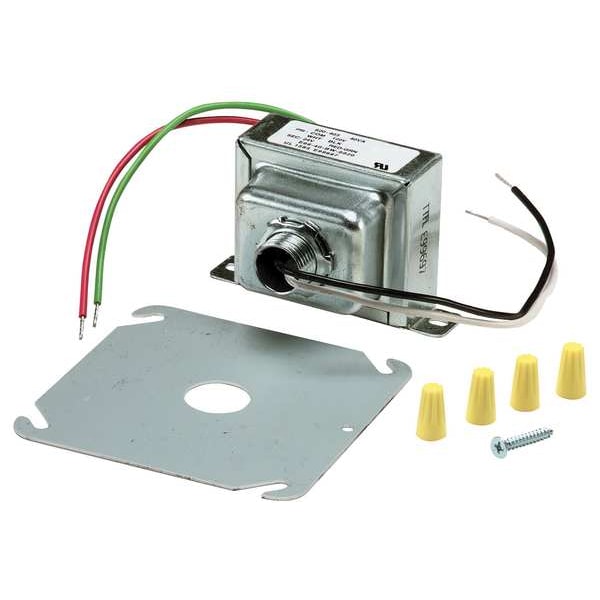

Class 2 Transformer, 50 VA, NEMA 1, Not Rated, 24V AC, 120/208/240V AC
| Item | Class 2 Transformer |
|---|---|
| Input Voltage - Transformer | 120/208/240V AC |
| Mounting - Transformer | Foot, Universal |
| Hz - Electrical | 50/60 Hz |
| VA Rating - Transformer | 50 VA |
| Primary Connection | Leads |
| Temp. Rise | Not Rated |
| Protective Device | Primary Fuse |
| Phase - Electrical | 1 |
| Enclosure Style - Transformer | Open |
| Standards | UL 1411, UL File No. E92807 |
| Height | 4 in |
| Width | 3-1/4 in |
| Enclosure Finish | No Finish |
| Secondary Connection | 8 in Leads |
| Enclosure Type | Open |
| Enclosure Rating | NEMA 1 |
| Output Voltage - Transformer | 24V AC |
| Depth | 4 in |
| Manufacturers Warranty Length | 1 yr |
| Series Application | 620 Series Transformers |
| Primary Voltage | 120/208/240V AC, 50/60 Hz |
| Secondary Lead Length | 8" (203mm) |
| Model | Universal Mounting - Foot, 4x4 Plate or Hub Mount |
| Agency Approvals | UL 1411 |
| Primary Lead Length | 8" (203mm) |
| Connection - Secondary | Wire Lead |
| Wire Lead Length - Secondary | 8 in |
| Connection - Primary | Wire Lead |
| Wire Lead Length - Primary | 8 in |
| Package Quantity | 1 |
