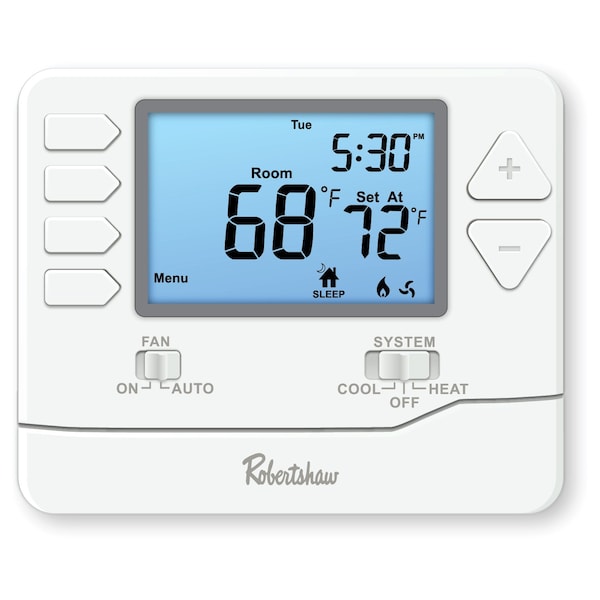

Digital Wall Thermostat, White, 1" D
| Item | Digital Wall Thermostat |
|---|---|
| Voltage | 18 to 30V AC |
| Dual Transformer Compatible | Yes |
| Temporary Program Override | Yes |
| Key Pad Lockout | No |
| Dehumidification Control | No |
| Control Type | Push Button |
| Humidification Control | No |
| Display Type | Digital |
| Standards | ISO-9001 Certified |
| Temperature Limiting | No |
| Low Battery Indicator | Yes |
| Includes | Batteries |
| Terminal Designations | B, C, G, O, RC, RH, W, Y |
| Temporary Temperature Hold | Yes |
| Stages | 1H/1C |
| Battery Backup | Yes |
| Overall Width | 4-11/16 in |
| Application | Cool, Heat |
| Overall Height | 3-13/16 in |
| Compatible System Type | Heat Pump with Aux |
| Digit Size | Large/Easy Read |
| Backlit Screen | Yes |
| Wireless | No |
| Changeover Type | Manual |
| Includes Positive Off | Yes |
| Mounting Direction | Horizonal |
| Filter Change Reminder | Yes |
| Differential Cool | 0.2 deg F, 2 deg F |
| Maximum Operating Temperature | 99 deg F |
| System Settings | Heat-Cool-Off |
| Battery Type | AAA Batteries |
| Number of Heating Stages - Heat Pump System | 1 |
| Maximum Operating Humidity | 90 % |
| Millivolt Compatible | Yes |
| Temperature Scale | Fahrenheit, Celsius |
| Temperature Differential | +/-0.2 to 2.0 Degrees F |
| Backlit Screen Color | Blue |
| Differential Heat | 0.2 deg F, 2 deg F |
| Wireless System Compatibility | Not Applicable |
| Temperature settings per day | 4 |
| Sensor Location | Built-In |
| Housing Color | White |
| Number of Cooling Stages - Heat Pump System | 1 |
| Overall Depth | 1 in |
| Includes Batteries | Yes |
| Temperature Sensitivity | +/-1 deg F |
| Application/Stages | Heat and Cool/2 |
| Number of Heating Stages - Conventional System | 1 |
| Frequency | 0.8333 Hz |
| Minimum Operating Temperature | 41 deg F |
| Number of Zones | 1 |
| Fan Settings | Auto-On |
| Programming Capability | 5-1-1, 7-Day |
| Temperature Control Range | 44 to 90 deg F |
| Differential Type | Adjustable |
| Minimum Control Temperature | 44 deg F |
| Number of Cooling Stages - Conventional System | 1 |
| Screen Height | 4-5/8 in |
| Backlit Type | Seconds |
| Requires C-Wire | No |
| Smart Connectivity | No Connectivity |
| Thermostat Type | Low Voltage |
| Temperature Readout | Yes |
| Maximum Control Temperature | 90 deg F |
| Operating Temperature Range | 41 to 95 deg F |
| Screen Width | 4-5/8 in |
| Shape | Square |
| Electrical Connection Type | Battery, Hardwired |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
