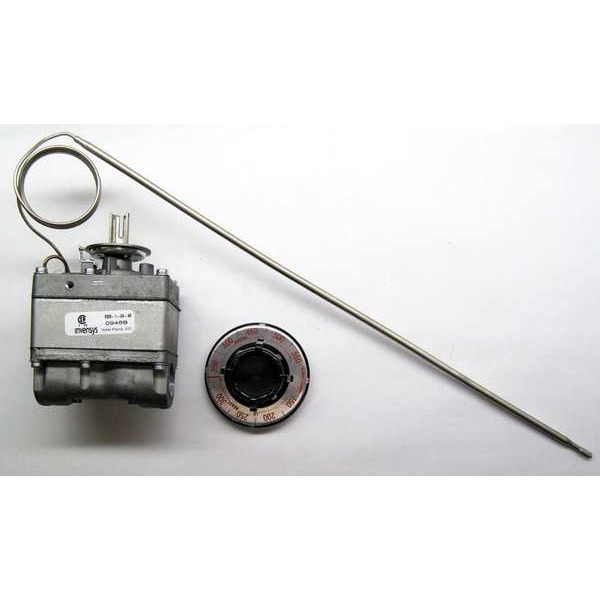

Gas Cooking Control, Tstat, 1/2In, 150-550
| Includes | 4-Way Dials |
|---|---|
| Capillary Length | 48 in |
| Type | Thermostat |
| Gas Type | NG/LP |
| Replaces | FD Control |
| Agency Compliance | ANSI Z21.23, CSA |
| Temp. Range | 150 to 550 |
| Mounting Position | 4 Way |
| Bulb Size | 1/4 in x 8-7/16 in |
| Dial Range | 150 to 550 |
| Gas Connection | 1/2" Pipe |
| Item | Gas Thermostat |
| For Use With | Commercial Cooking Applications |
| Standards | ANSI Z21.23, CSA Certified |
| Stem Length | 1/2 in |
| Sensing Bulb Length | 8-7/16 in |
| Minimum Control Temperature | 150 deg F |
| Maximum Control Temperature | 550 deg F |
| Compatible with Series | Universal |
| OEM Replacement Part Number | 1010300, 1010301, 1010398, 1010399, 1010401, 1017500, 1017591, 1170193, 146517, 28257, 348568-00001, 348568-1, 41615300100, 4200-033, 4200-C004, 4200-C006, 4202-007, 460-153-A00, 503-000-03, 503-000-05, 722620, F16-646, FDH-1-08-48, FDO-1-02-24, FDO-1-02-48, FDO-1-03-30, FDO-1-04-48, FDO-1-08-36, FDO-1-08-48, FDO-1-09-36, FDO-1-10-30, FDO-1-14-48, FDO-1-15-48, FDO-1-16-24, FDO-1-16-48, FDTS-1-02-24, G-105, M1038A, RS004713, Z597300036, Z597300048, Z597370048, Z597420036, Z597620030, Z750570024, Z802480024, Z802480048, Z88115-48, Z881150048, Z88126-48, Z88152-48, Z881710030, Z881940048, Z881950048 |
| Sensing Bulb Diameter | 1/4 in |
| Series | 4200 |
| Application | Commercial Cooking Appliances |
| Capillary Tube Length | 48 in |
| For Fuel Type | Gas, LP |
| Product Type | Gas Thermostat |
| Compatible with Brand | Bakers Pride, Consolidated Communications, Franklin Chef, Garland, Hobart, Jade Range, Johnstone Supply, Peerless, PMI, Robertshaw, South Bend Range, Uni-Line, Wolf Range |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
