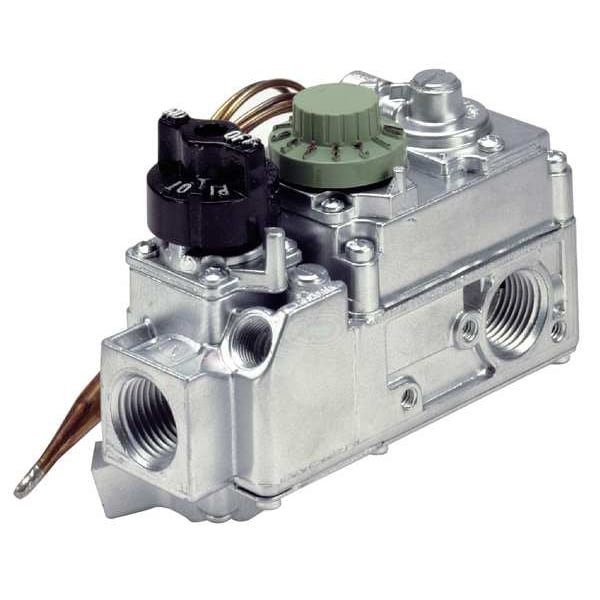

Gas Valve, NG/LP, 3.5 in wc, Standard Opening, -40 to 175 Degrees F, 1/2 in Inlet Size
| BtuH Capacity | 70,000 BtuH |
|---|---|
| Gas Type | NG/LP |
| Inlet Size | 1/2 in |
| Outlet Size | 1/2 in |
| Reducer Bushing Kit | 1/2 X 3/8 in |
| Valve Type | Standard Opening |
| For Use With | RV's And Other Applications With Limited Space |
| Ambient Temp. Range | -40 to 175 deg F |
| Item | Gas Valve |
| LP Conversion Kit | No |
| Pressure Setting Range | 3.5 in wc |
| Flow Direction | Straight-Thru |
| Includes | (2) 1/2 X 3/8 in Reducer Bushings |
| Side Taps | Yes |
| Max. Inlet Pressure | 0.5 psi |
| Standards | RoHS compliant, NEMA, CSA |
| Inlet Pressure Tap | Yes |
| Operating Temperature - Minimum | -40 deg F |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Reducer Bushings Included | (2) 1/2 x 3/8 in |
| Includes Side Taps | Side Taps Included |
| Includes On/Off Switch | Off, On Switch Included, Pilot |
| Installation Orientation | Versatile |
| Application | Furnaces |
| Heating Capacity - Maximum | 70,000 BtuH |
| Includes Thermostat | Mechanical Thermostat Not Included |
| Includes Pressure Regulator | Pressure Regulator Not Included |
| Includes Pressure Tap | Pressure Tap Inlet Included |
| Port Connection Size | 1/2 in |
| Pilot Type | Standing Pilot |
| Operating Temperature - Maximum | 175 deg F |
| Voltage | Not Applicable |
| For Media | Liquid Propane, Natural Gas |
| Includes Conversion Kit | Conversion Kit Not Included |
| Manufacturer Series | 710 |
| Sensing Type | Flame Sensor |
| Pilot Port Connection Type | Compression |
| Port Connection Type | NPT |
| Valve Design | Single |
| Port Connection Gender | Female |
| Pilot Port Connection Size | 1/4 in |
| Opening Characteristic | Fast Opening |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
