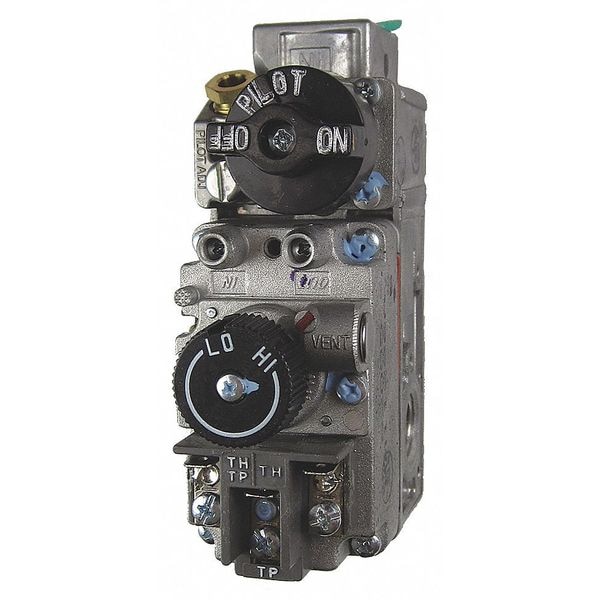

Gas Valve, NG/LP, 750 mV, 1.7 to 3.5" WC, Low Capacity, -40 to 175 Degrees F, 1/2 in Inlet Size
| BtuH Capacity | 70,000 BtuH |
|---|---|
| Coil Volts | 750 mV |
| Gas Type | NG/LP |
| Inlet Size | 1/2 in |
| Outlet Size | 3/8 in |
| Valve Type | Low Capacity |
| Ambient Temp. Range | -40 to 175 deg F |
| Item | Gas Valve |
| Pressure Setting Range | 1.7 to 3.5" WC |
| Flow Direction | Straight-Thru |
| Side Taps | No |
| Inlet Pressure Tap | Yes |
| Max. Inlet Pressure | 0.5 psi |
| Standards | RoHS compliant, NEMA, CSA |
| Includes Thermostat | Mechanical Thermostat Not Included |
| Installation Orientation | Versatile |
| Includes Conversion Kit | Conversion Kit Included |
| Pilot Type | Standing Pilot |
| Opening Characteristic | Fast Opening |
| Reducer Bushings Included | None |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Voltage | 0.75 V |
| Includes Side Taps | Side Taps Not Included |
| Operating Temperature - Maximum | 175 deg F |
| Port Connection Gender | Female |
| Heating Capacity - Maximum | 70,000 BtuH |
| Manufacturer Series | 710 |
| Sensing Type | Flame Sensor |
| Port Connection Type | NPT |
| Pilot Port Connection Type | Compression |
| Operating Temperature - Minimum | -40 deg F |
| Valve Design | Single |
| Port Connection Size | 3/8 in |
| Includes Pressure Tap | Pressure Tap Inlet Included |
| Pilot Port Connection Size | 1/4 in |
| Includes Pressure Regulator | Pressure Regulator Included |
| For Media | Liquid Propane, Natural Gas |
| Includes On/Off Switch | Off, On Switch Included, Pilot |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
