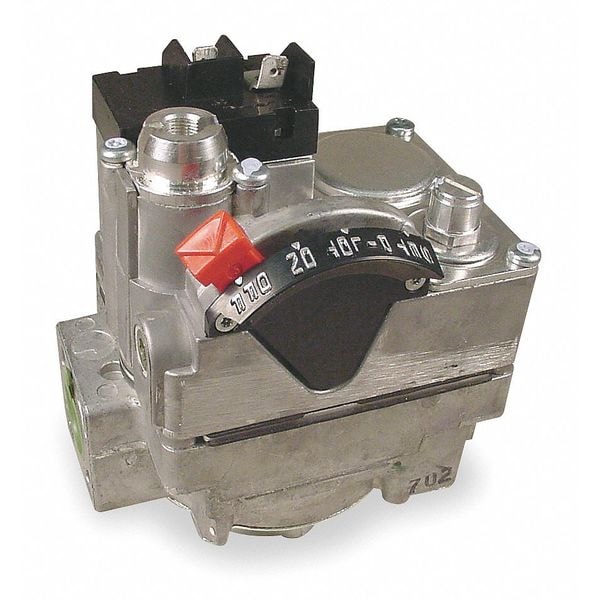

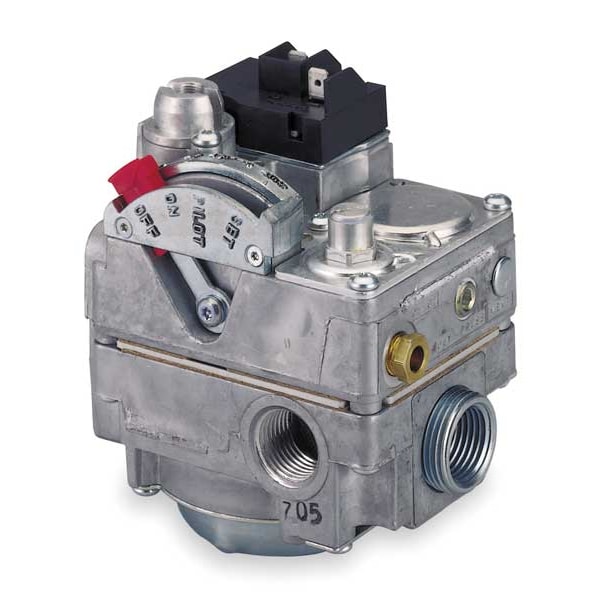

Gas Valve, NG/LP, Standing Pilot, 24 V, 3.5 in wc, Fast Opening, 0.5 A, -40 to 175 Degrees F
| BtuH Capacity | 150,000 BtuH |
|---|---|
| Coil Volts | 24 V |
| Gas Type | NG/LP |
| Ignition Type | Standing Pilot |
| Inlet Size | 1/2 in |
| Outlet Size | 3/4 in |
| Reducer Bushing Kit | 3/4 x 1/2 in |
| Valve Type | Fast Opening |
| Amps AC | 0.5 A |
| Ambient Temp. Range | -40 to 175 deg F |
| Item | Gas Valve |
| LP Conversion Kit | Yes |
| Pressure Setting Range | 3.5 in wc |
| Flow Direction | Straight-Thru |
| Includes | 3/4 x 1/2 in Reducer Bushing, Outlet Pressure Tap, Pipe Plugs, Regulator Cover Plate to Convert to LP |
| Inlet Pressure Tap | No |
| Standards | NEMA, RoHS compliant |
| Max. Inlet Pressure | 0.5 psi |
| Side Taps | Yes |
| Opening Characteristic | Fast Opening |
| Operating Temperature - Maximum | 175 deg F |
| Includes Thermostat | Mechanical Thermostat Not Included |
| Port Connection Type | NPT |
| Port Connection Gender | Female |
| Includes Side Taps | Side Taps Included |
| Includes Pressure Tap | Pressure Tap Outlet Included |
| Includes On/Off Switch | Off, On Switch Included, Pilot |
| Voltage | 24 V AC |
| Installation Orientation | Versatile |
| Includes Conversion Kit | Conversion Kit Included |
| Manufacturer Series | 720 |
| Sensing Type | Flame Sensor |
| Current | 0.5 A |
| Includes Pressure Regulator | Pressure Regulator Included |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Port Connection Size | 3/4 in |
| Pilot Port Connection Size | 1/4 in |
| Pilot Port Connection Type | Compression |
| Electrical Connections | Screw/Spade Terminal |
| Operating Temperature - Minimum | -40 deg F |
| Reducer Bushings Included | 3/4 x 1/2 in |
| For Media | Liquid Propane, Natural Gas |
| Valve Design | Dual |
| Heating Capacity - Maximum | 150,000 BtuH |
| Pilot Type | Standing Pilot |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
