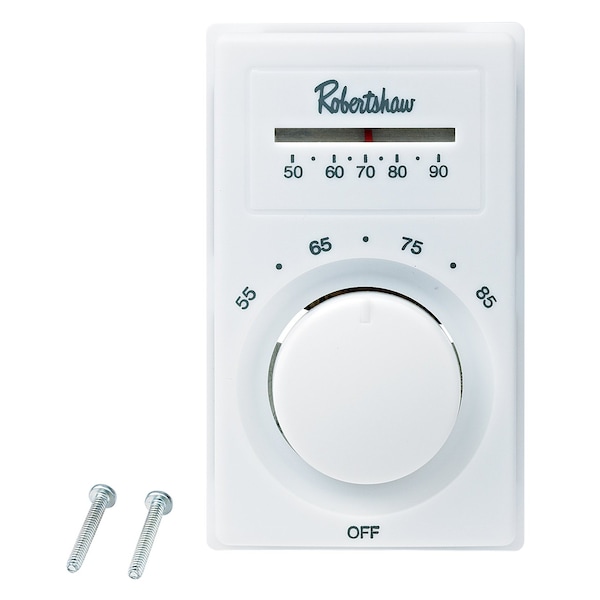

Line Volt Mechanical Tstat, Open on Rise, 120 to 277V AC
| Switch Action | Open on Rise |
|---|---|
| Voltage | 120 to 277V AC |
| Switch Type | SPST |
| Control Type | Exposed Dial |
| Thermostat Type | Line Voltage |
| Battery Backup | No |
| Item | Line Volt Mechanical Tstat |
| Temperature Limiting | No |
| Application | Heat Only |
| Standards | CSA Certified, UL Listed |
| Phase | 1 |
| Terminal Designations | Black, Red |
| Overall Width | 3 in |
| Overall Height | 4-3/4 in |
| Temperature Readout | Yes |
| Minimum Control Temperature | 50 deg F |
| Housing Type | Without Housing |
| Millivolt Compatible | No |
| Wireless | Yes |
| Contact Type | Single Break, Double Break |
| Housing Color | White |
| Overall Depth | 1 in |
| Temperature Scale | Fahrenheit |
| Housing Material | Plastic |
| External Power Source | Electric Supply Line |
| Temperature Sensitivity | +/-2 deg F |
| Shape | Rectangle |
| Electrical Connection Type | Hardwired |
| Overall Diameter | 5-1/2 in |
| Battery Type | Not Applicable |
| Temperature Control Range | 50 to 90 deg F |
| Compatible System Type | J-Box |
| Mercury Free | Yes |
| Maximum Control Temperature | 90 deg F |
| Pilot Duty Rating | 125 VA |
| Includes Batteries | No |
| Temperature Differential | 2 Degrees F |
| System Settings | On-Off |
| Stages | 1H |
| Number of Cooling Stages | Not Applicable |
| Number of Heating Stages | 1 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
