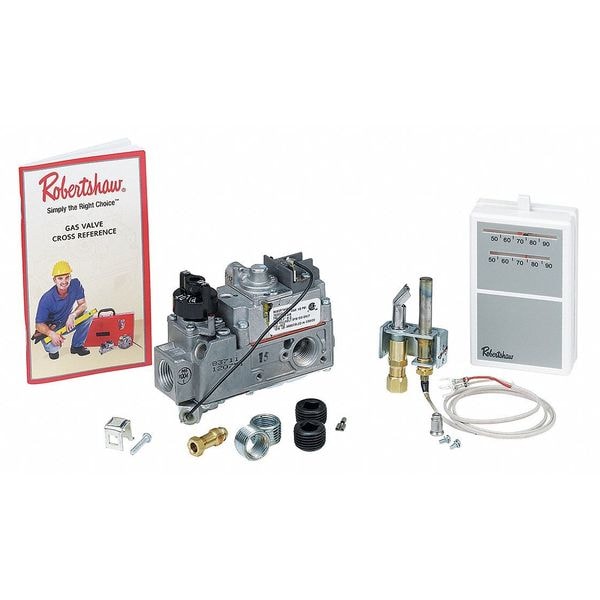

Millivolt Kit, Natural Gas, Pilot, 750 mV, 3.5 in wc, Low Capacity, 58 to 90 Degrees F
| BtuH Capacity | 70,000 BtuH |
|---|---|
| Coil Volts | 750 mV |
| Gas Type | Natural Gas |
| Ignition Type | Pilot |
| Inlet Size | 1/2 in |
| Outlet Size | 1/2 in |
| Reducer Bushing Kit | 1/2 X 3/8 in |
| Valve Type | Low Capacity |
| For Use With | Millivolt Wall Furnaces, In-The-Floor Furnaces, and Fireplaces |
| Ambient Temp. Range | 58 to 90 deg F |
| Item | Millivolt Kit |
| Pressure Setting Range | 3.5 in wc |
| Flow Direction | Straight-Thru |
| Includes | (2) 1/2 x 3/8 in Reducer Bushings, Gas Valve Cross Reference Book, Mechanical Thermostat, Millivolt Gas Valve, Pilot Uni-Kit |
| Side Taps | Yes |
| Inlet Pressure Tap | Yes |
| Voltage | 0.75 V |
| Includes Conversion Kit | Conversion Kit Included |
| Includes On/Off Switch | Off, On Switch Included, Pilot |
| Valve Design | Single |
| Port Connection Type | NPT |
| Operating Temperature - Maximum | 90 deg F |
| Application | Limited Space, Low Capacity |
| Manufacturer Series | 710 |
| Port Connection Size | 1/2 in |
| Includes Pressure Tap | Pressure Tap Inlet Included |
| Reducer Bushings Included | (2) 1/2 x 3/8 in |
| Port Connection Gender | Female |
| Includes Pressure Regulator | Pressure Regulator Included |
| Operating Temperature - Minimum | 58 deg F |
| For Media | Liquid Propane, Natural Gas |
| Heating Capacity - Maximum | 70,000 BtuH |
| Opening Characteristic | Fast Opening |
| Includes Side Taps | Side Taps Not Included |
| Includes Pilot Generator Kit | Pilot Generator Kit Included |
| Sensing Type | Flame Sensor |
| Pilot Type | Standing Pilot |
| Includes Thermostat | Mechanical Thermostat Included |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
