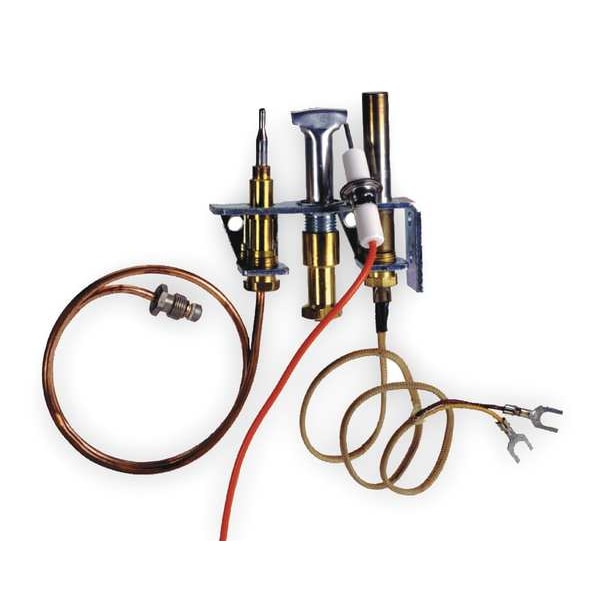

Pilot Assembly, LP/NG, 750 and 18 to 30 mV, T-Pile 24, Electrode 18, T-Couple 18 L., Lo-Mass
| Gas Type | LP, NG |
|---|---|
| Item | Pilot Assembly |
| Length (In.) | T-Pile 24, Electrode 18, T-Couple 18 |
| Tip Style | Snap-Fit |
| Type | Universal |
| Voltage | 750 and 18 to 30 mV |
| Includes | NG & LP orifice |
| Orifice Dia. (In.) | LP .010, NG 0.018 |
| Connection Type | Quick Dropout |
| Thermocouple Type | Lo-Mass |
| Special Information | 1/4 in Gas Connections, Coaxial Tee Couple, Female Bullet Electrode, Two Wire Spade Tee Pile |
| Package Quantity | 1 |
| Product Type | Pilot Assembly |
| Includes Ignitor | Ignitor Not Included |
| Compatible with Brand | Robertshaw, Uni-Line |
| Flame Sensor Included | Flame Sensor Included |
| Includes Thermocouple | Thermocouple Included |
| Includes Thermopile | Thermopile |
| For Fuel Type | LP |
| Flame Pattern Type | 3-Way |
| Series | 1800 Pilot |
| Replacement Type | Universal |
| Lead Length | 18 in |
| OEM Replacement Part Number | 64203, 77705, 77713 |
| Compatible Components | Thermocouple |
| Compression Fitting Size | 1/4 in |
| Input Voltage | 750 mV |
| Compatible with Series | Uni-Line(R) 1900-1970 |
| Orifice Size | 0.018 in |
| Country of Origin (subject to change) | Mexico |
