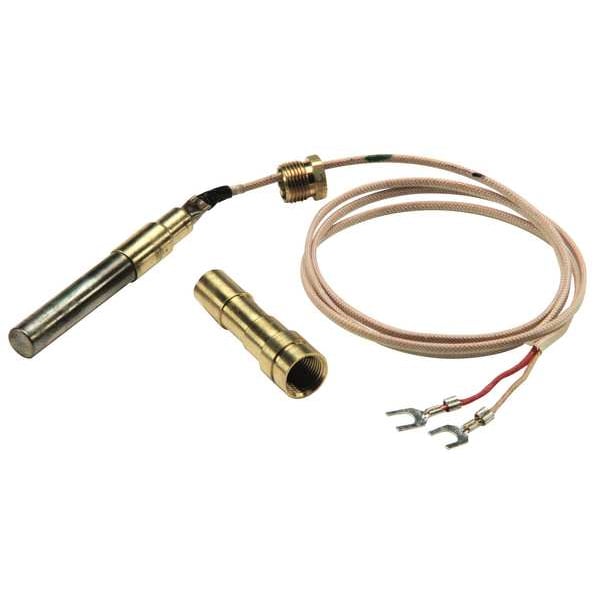

Thermopile, LP/NG, 250mv to 750mv, 36 in L., Pilot Generator, PG9 Pilot Adaptor, Tinnerman Clip
| Gas Type | LP, NG |
|---|---|
| Item | Thermopile |
| Length (In.) | 36 |
| Tip Style | CP-2 |
| Type | Pilot Generator |
| Voltage | 250mv to 750mv |
| Includes | PG9 Pilot Adaptor, Tinnerman Clip |
| Connection Type | Two Lead |
| Special Information | Stainless Steel Outer Jacket for Long Life and Resistance to Heat Blistering |
| Package Quantity | 1 |
| For Use With | Self-Powered Gas Control Systems |
| Product Type | Thermopile |
| Overall Length | 36 in |
| Output | 250 to 750 mV |
| Cable Length | 36 in |
| Probe Length | 2 in |
| Probe Diameter | 3/8 in |
| Standards | CSA Certified |
| Compatible with Brand | Universal |
| For Fuel Type | Natural Gas, LP |
| Process Connection Type | Two Lead |
| Compatible with Series | TP-75 |
| Process Connection Size | Not Applicable |
| Series | Robertshaw 1950 and 1951 |
| For Pilot System Type | Standing Pilot |
| Country of Origin (subject to change) | Mexico |
