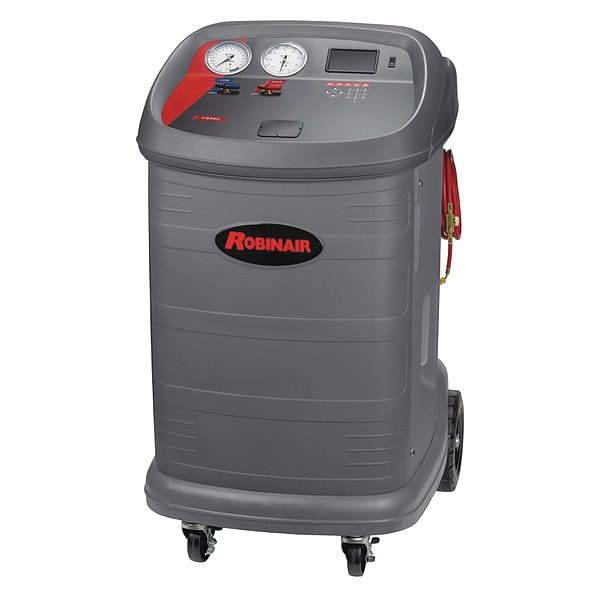

Refrigerant Recovery Machine, 3/8 HP, 47"H
| Item | Refrigerant RRR Machine |
|---|---|
| Type | Twin Cylinder |
| Electrical Connections | NEMA 5-15 Male Plug |
| Hose Connection | 1/4 in FFL Connector |
| Voltage | 115 V |
| Requires | Air Purge Hose, FFL connector, Fill Hoses, Recovery Tanks, Service Hoses 18ft |
| Operating Temp. Range (F) | 50 to 104 |
| Weight (Lbs.) | 280 |
| Includes | 1/4 in FFL Connector, 18 ft Blue Service Hose, 18 ft Red Service Hose, 50 lb General Recovery Tank, Blue Tank Fill Hose, Red Tank Fill Hose, Yellow Tank Air Purge Hose |
| Height (In.) | 47 |
| For Use With | R-12, R-134A, R-22, R-402A, R-402B, R-404A, R-407A, R-407B, R-407C, R-410A, R-500, R-502, R-507 |
| Depth (In.) | 47 |
| Motor HP | 0.375 |
| Material | Plastic |
| Compressor | Piston |
| Width (In.) | 30 |
| Special Features | 4.3 in Color Graphical Display, Automatic Oil Drain, Automatically Adjusts From Liquid To Vapor for Fast and Efficient Recovery, Automatically Controls Machine Functions, Electronic Scale Makes It Simple to Recharge to Factory Specifications, Heavy-Duty Filter Can Handle Up to 300 lb of Refrigerant, Optional Printer Can Be Added to Expand Capabilities and Provide Printed Record of Service Performed. |
| Display Type | Color |
| Functions | Refrigerant Charging, Refrigerant Recovery |
| Maximum Operating Temperature | 104 deg F |
| Features | Automatic Oil Drain, Automatically Adjusts From Liquid To Vapor for Fast and Efficient Recovery, Automatically Controls Machine Functions, Electronic Scale Makes It Simple to Recharge to Factory Specifications, Heavy-Duty Filter Can Handle Up to 300 lb of Refrigerant, Optional Printer Can Be Added to Expand Capabilities and Provide Printed Record of Service Performed |
| Overall Height | 47 in |
| Overall Width | 30 in |
| Standards | SAE J2788, UL 1963 |
| Tank Capacity | 50 lb |
| Compatible Vehicle Type | Diesel Vehicles, Hybrid Vehicles |
| Overall Depth | 47 in |
| Power Source | Electric |
| Hose Length | 9 ft |
| Tank Type | External Tank |
| Operation | Automatic |
| Refrigerant Type | R-134a, R-12, R-22, R-402A, R-404A, R-407C, R-502, R-410A, R-402B, R-407A, R-407B, R-500, R-507 |
| Filter-Drier Capacity | 300 lb |
| Display Size | 4.3 in |
| Connectivity | No Connectivity |
| Product Type | Recharge Machine, Recycle, Refrigerant Recover |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
