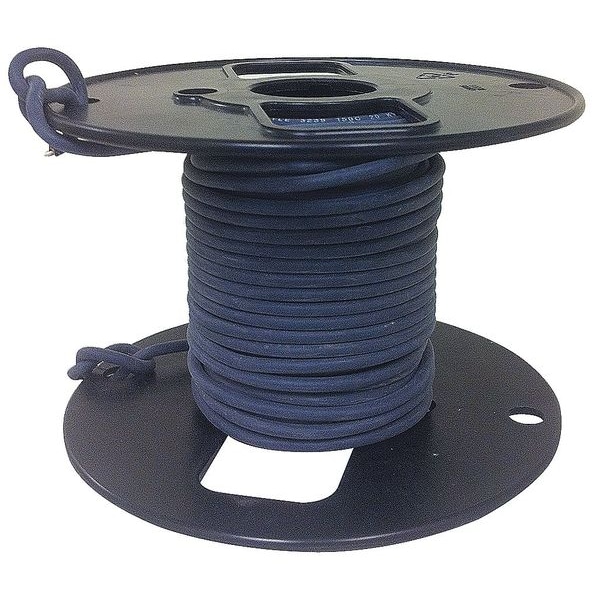

Cable de Plomo de Alto Voltaje, HV, calibre 14 AWG, color negro, de 50 pies de longitud. Ideal para aplicaciones de alta tensión.
| Item | High-Voltage Lead Wire |
|---|---|
| Conductor Material | Tinned Copper |
| Trade Designation | HV |
| Length | 50 ft |
| Jacket Color | Black |
| Nominal Outside Dia. | 0.22 in |
| Voltage | 25,000 V |
| Insulation Material | Silicone |
| Conductor Design | Stranded |
| Temp. Rating | 302°F |
| Stranding | 41 x 30 |
| Wire Size | 14 AWG |
| Wire Color | Black |
| Standards | 150C Rated, Meets UL VW-1 Requirements, UL 3239, UL Listed (File E61355) and RoHS Compliant |
| Cable Type | HV |
| Packaging | Spool |
| Conductor Insulation Material | Silicone |
| Series | R800 |
| Temperature Rating - Maximum Dry | 302 deg F |
| Number of Strands | 41 |
| Conductor Insulation Color | Black |
| Nominal Outside Diameter | 0.22 in |
| Overall Length | 50 ft |
| Number of Conductors | 1 |
| Temperature Rating - Maximum Wet | Not Applicable |
| Conductor Size | 14 AWG |
| Package Quantity | 1 |
