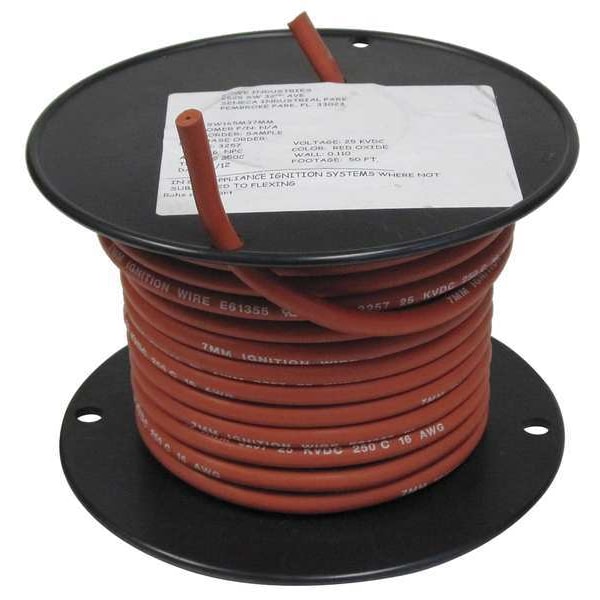

Este cable conductor de alta tensión Rowe ofrece alta calidad y durabilidad. Fabricado con cobre niquelado de calibre 16 AWG en color rojo, con una longitud de 50 pies. Ideal para aplicaciones que requieren un rendimiento superior.
| Item | High-Voltage Lead Wire |
|---|---|
| Conductor Material | Nickel Plated Copper |
| Trade Designation | HV |
| Length | 50 ft |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.26 in |
| Voltage | 25,000 V |
| Insulation Material | Silicone |
| Conductor Design | Stranded |
| Temp. Rating | 482°F |
| Stranding | 19 x 29 |
| Wire Size | 16 AWG |
| Wire Color | Red |
| Standards | 250C Rated, UL 3257, UL Listed (File E61355) and RoHS Compliant |
| Cable Type | HV |
| Number of Conductors | 1 |
| Packaging | Spool |
| Nominal Outside Diameter | 0.27 in |
| Series | Not Applicable |
| Overall Length | 50 ft |
| Temperature Rating - Maximum Wet | Not Applicable |
| Temperature Rating - Maximum Dry | 482 deg F |
| Conductor Size | 16 AWG |
| Conductor Insulation Color | Red |
| Number of Strands | 19 |
| Conductor Insulation Material | Silicone |
| Package Quantity | 1 |
