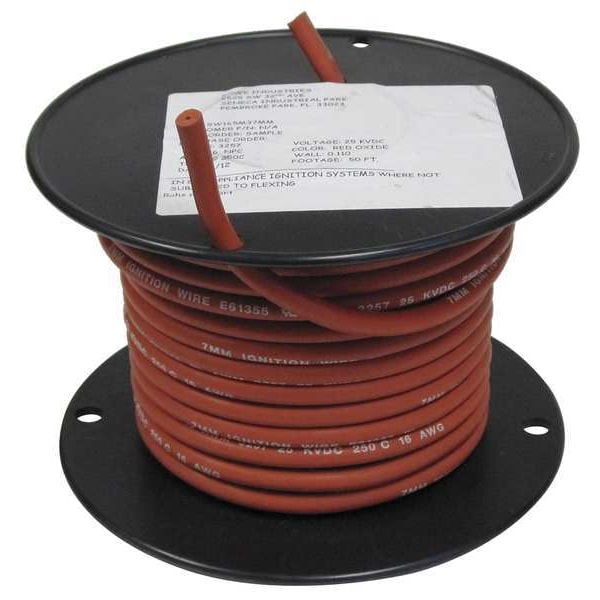

Este cable de conexión de alto voltaje Rowe está hecho de cobre niquelado de 18 AWG en color rojo. Tiene una longitud de 50 pies y está diseñado para aplicaciones de alta tensión.
| Item | High-Voltage Lead Wire |
|---|---|
| Conductor Material | Nickel Plated Copper |
| Trade Designation | HV |
| Length | 50 ft |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.21 in |
| Voltage | 25,000 V |
| Insulation Material | Silicone |
| Conductor Design | Stranded |
| Temp. Rating | 482°F |
| Stranding | 16 x 30 |
| Wire Size | 18 AWG |
| Wire Color | Red |
| Standards | 250C Rated, UL 3257, UL Listed (File E61355) and RoHS Compliant |
| Cable Type | HV |
| Packaging | Spool |
| Number of Conductors | 1 |
| Nominal Outside Diameter | 0.21 in |
| Conductor Insulation Color | Red |
| Temperature Rating - Maximum Wet | Not Applicable |
| Overall Length | 50 ft |
| Number of Strands | 16 |
| Conductor Insulation Material | Silicone |
| Series | Not Applicable |
| Conductor Size | 18 AWG |
| Temperature Rating - Maximum Dry | 482 deg F |
| Package Quantity | 1 |
