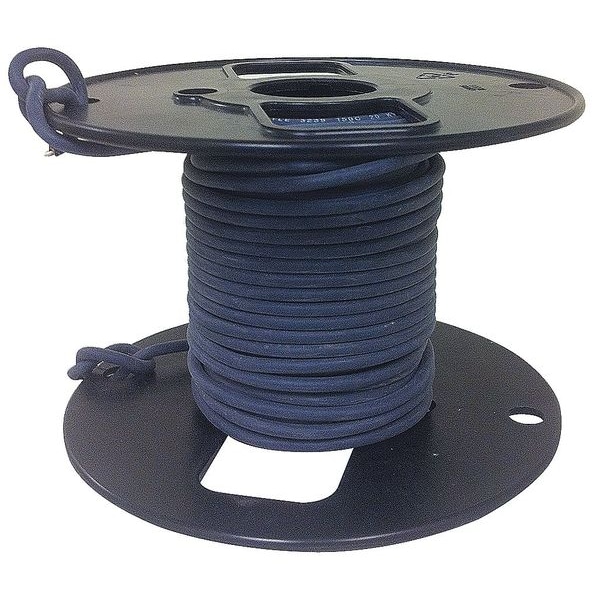

Este cable de plomo de alto voltaje está hecho de cobre estañado de calidad, calibre 14 AWG, en color negro. Con una longitud de 50 pies, es ideal para aplicaciones de alta potencia.
| Item | High-Voltage Lead Wire |
|---|---|
| Conductor Material | Tinned Copper |
| Trade Designation | HV |
| Length | 50 ft |
| Jacket Color | Black |
| Nominal Outside Dia. | 0.15 in |
| Voltage | 10,000 V |
| Insulation Material | Silicone |
| Conductor Design | Stranded |
| Temp. Rating | 302°F |
| Stranding | 41 x 30 |
| Wire Size | 14 AWG |
| Wire Color | Black |
| Standards | 150C Rated, Meets UL VW-1 Requirements, UL 3239, UL Listed (File E61355) and RoHS Compliant |
| Cable Type | HV |
| Packaging | Spool |
| Number of Conductors | 1 |
| Conductor Size | 14 AWG |
| Temperature Rating - Maximum Dry | 302 deg F |
| Overall Length | 50 ft |
| Conductor Insulation Material | Silicone |
| Temperature Rating - Maximum Wet | Not Applicable |
| Number of Strands | 41 |
| Series | R800 |
| Nominal Outside Diameter | 0.15 in |
| Conductor Insulation Color | Black |
| Package Quantity | 1 |
