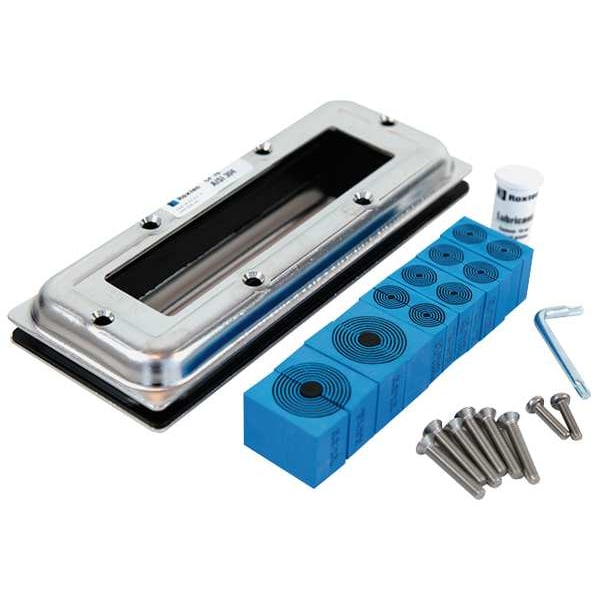

Sellador de cable/tubo, de 0.37 a 1.28 pulgadas de diámetro.
| Cable or Pipe Diameter Range | (2) 0.37 in to 1.28 in, (8) 0.13 in to 0.65 in |
|---|---|
| Material of Construction | Stainless steel |
| Width | 3.66 in |
| Number of Holes | 10 |
| Length | 9.21 in |
| Height | 1.65 in |
| Standards | UL |
| Item | Cable/Pipe Seal |
| Length (Straight Wireway) | 9.21 in |
| Required Enclosure Opening Diameter | Not Applicable |
| Overall Height | 1.65 in |
| Overall Length | 9.21 in |
| Overall Width | 3.66 in |
| Frame Material | Stainless Steel |
| Required Enclosure Opening Length | 7.362 in |
| NEMA Enclosure Rating | 12, 13, 4, 4X |
| Number of Ports | 10 |
| Compatible Cable or Pipe Diameter - Minimum | 0.138 in |
| Required Enclosure Opening Width | 2.795 in |
| Compatible Cable or Pipe Configuration | 0.138 in to 0.650 in, 0.374 in to 1.280 in |
| IP Rating | IP66, IP67, IP69K |
| Compatible Cable or Pipe Diameter - Maximum | 1.28 in |
| Package Quantity | 1 |
