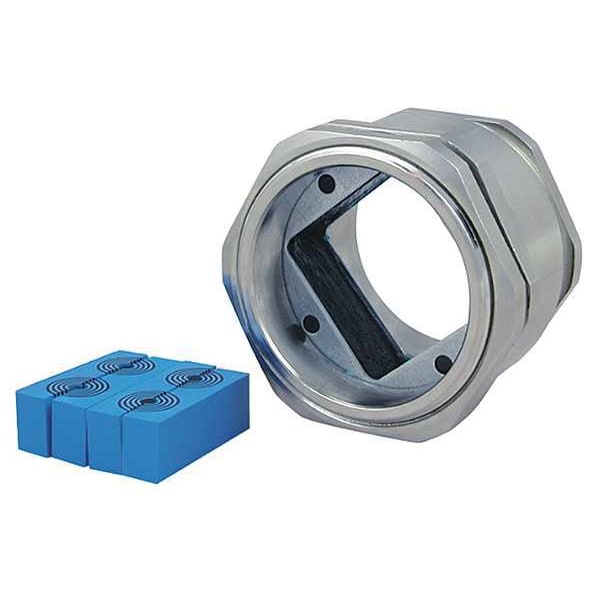

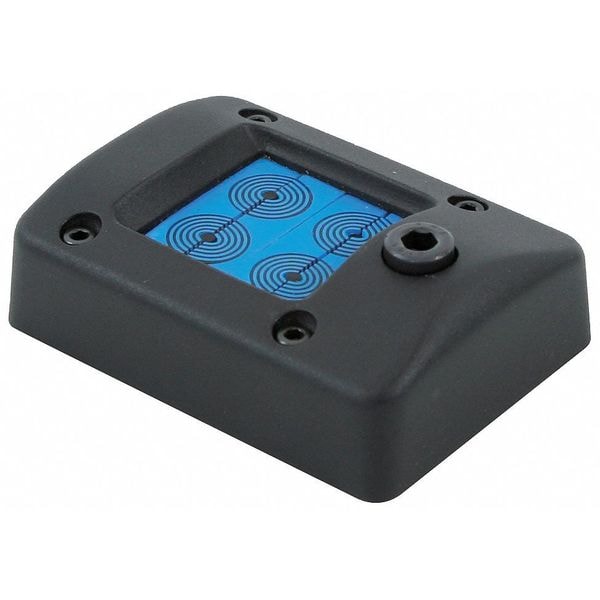

Entrada de cable, de 0.13 a 0.65 pulgadas de diámetro.
| Item | Cable Gland |
|---|---|
| Cable or Pipe Diameter Range | 0.13 to 0.65 in |
| Number of Holes | 4 |
| Material of Construction | Polyamide |
| Width | N/A |
| Height | 2 in |
| Standards | UL |
| Overall Width | Not Applicable |
| Required Enclosure Opening Length | Not Applicable |
| Number of Ports | 4 |
| Compatible Cable or Pipe Diameter - Maximum | 0.65 in |
| Required Enclosure Opening Diameter | 2.5 in |
| Compatible Cable or Pipe Configuration | 0.138 to 0.65 in |
| NEMA Enclosure Rating | 12, 13, 4, 4X |
| Required Enclosure Opening Width | Not Applicable |
| Overall Height | 2 in |
| Compatible Cable or Pipe Diameter - Minimum | 0.138 in |
| Frame Material | Brass |
| IP Rating | IP66, IP67 |
| Package Quantity | 1 |
