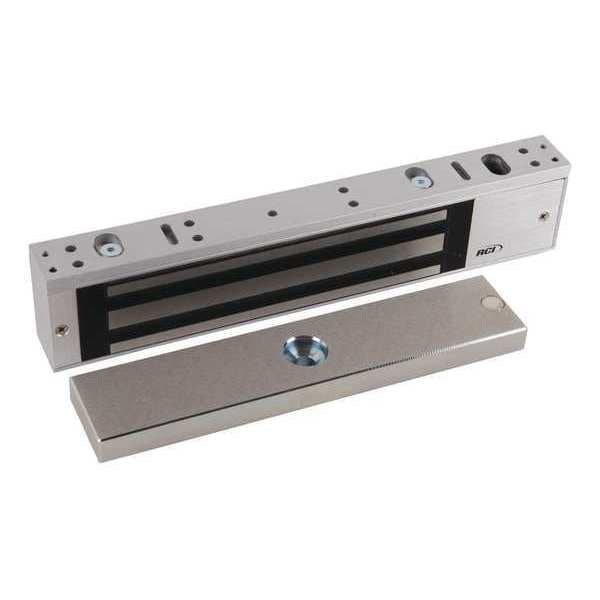

Lock, 12/24VDC, 750 lb. Holding Force
| Item | Electromagnetic Lock |
|---|---|
| Finish | Anodized |
| Type | Surface Mount |
| Input Voltage | 12/24V DC |
| For Use With | Single Inswing Doors with Z-Bracket, Single Outswing Doors |
| Material | Aluminum |
| Includes | Mounting Bracket |
| Opening Action | Electromagnetic |
| Options Included | Lock Status Sensor |
| Series | 8 |
| Features | Security Condition Sensor with LED |
| Amp Draw @ 12V | 0.52 |
| Mfr. Series | 2013 |
| Release Delay | Instantaneous |
| Armature Length (In.) | 7-1/4 |
| Amp Draw @ 24V | 0.26 |
| Armature Width (In.) | 1-1/2 |
| Lock Body Width (In.) | 1-7/8 |
| Armature Depth (In.) | 7/16 |
| Holding Force (Lb.) | 750 |
| Lock Body Length (In.) | 9-3/8 |
| Lock Body Depth (In.) | 1 |
| Standards | CAN/ULC S104, CSFM: 3774 2127:0100, UL 294 |
| Overall Width | 1-7/8 in |
| Armature Length | 7-1/4 in |
| Lock Body Width | 1-7/8 in |
| Overall Length | 9-3/8 in |
| Holding Force - Maximum | 750 lb |
| Includes Hardware | Hardware Included |
| Lock Body Depth | 1 in |
| Current @ 24V | 0.26 A |
| Current @ 12V | 0.52 A |
| UL Fire Rating | UL10C |
| Armature Width | 1-1/2 in |
| ANSI/BHMA Finish | Unfinished |
| Overall Height | 1 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
