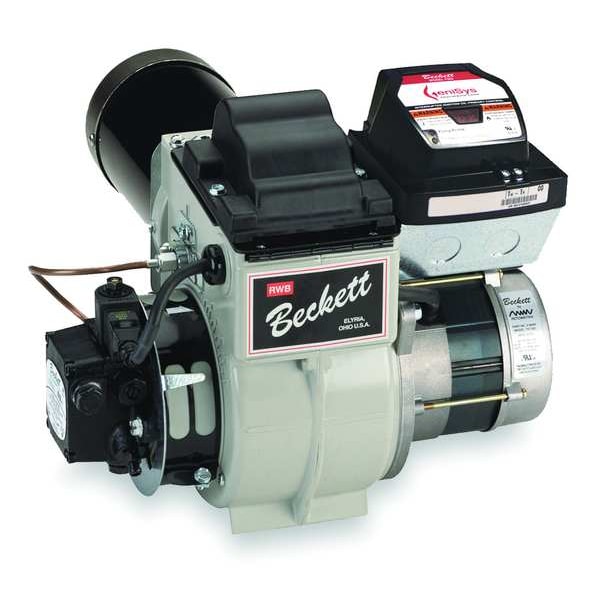

Oil Burner, 8-1/2 Dia x 9 In L Air Tube
| Item | Hot Water and Steam Boiler Oil Burner |
|---|---|
| Heater Voltage | 120V AC |
| Burner Type | Complete Flame Retention |
| Air Tube Length | 9 in |
| Air Tube Dia. | 8-1/2 in |
| GPH | 0.4 to 3.0 Determined by Nozzle Used |
| RPM | 3,450 RPM |
| Ignitor | Electronic |
| Pump | Single Stage |
| Prepurge Time | 15 sec |
| Motor Type | Manual Reset Overload Protection, NEMA 48 M-flange |
| Includes | Adjustable Mounting Flange, Assorted Heads And Static Plates, Low Fire Baffle |
| Valve Type | Integrated Solenoid |
| Ignition Type | Electronic |
| Overall Length | 15-1/2 in |
| Standards | UL Listed |
| Voltage | 120 V AC |
| Overall Height | 10 1/2 in |
| Overall Width | 12 1/2 in |
| Model Number | B2503 |
| Nozzle Thread Size | 9/16-24 |
| Air Tube Diameter | 4 in |
| Pump Type | Single Stage |
| Air Tube Length, Diameter | 9 in, 4 in |
| Voltage, Amperage | 120 V AC, 5.8 A |
| Product Type | High-Efficiency Oil Burner |
| Amperage | 5.8 A |
| Fuel Consumption | 0.75 gph, 2 gph |
| Motor Speed | 3,450 RPM |
| Fuel Type | No. 1 or No. 2 Heating Oil (ASTM D396) Only |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
