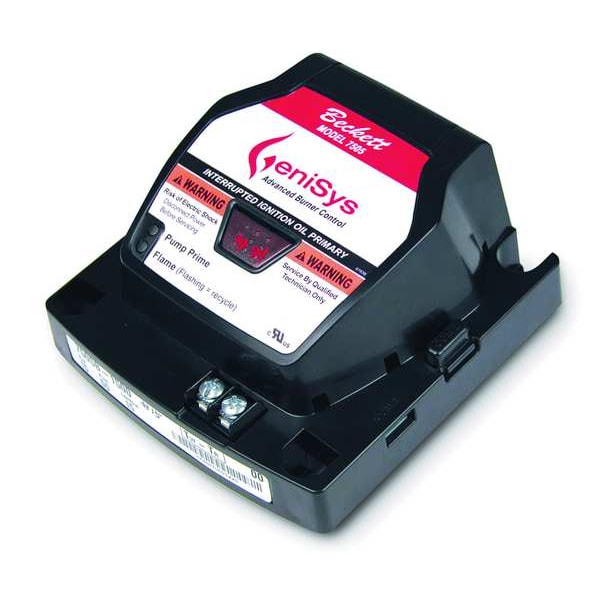

Oil Primary Control, Conduit Box
| Item | Hot Water and Steam Boiler Oil Burner Control |
|---|---|
| Mounting Type | Conduit Box |
| Heater Voltage | 132 V AC |
| Amps @ 120V | 3 A |
| Safety Switch Timing | 15 sec |
| Special Information | Thermostat and Boiler Control Compatible, Programmable Valve-On Delay and Motor-Off Delay, Three Indicator Lights for System Monitoring and Diagnostics, Two Communication Ports for Adding Alarm Contacts, Programming Display, And/Or Future Wireless Communications, Welded Relay Protection with Redundant Motor Relays, Limited Reset and Limited Recycle, Cad Cell Resistance Indicator, Technician Pump Prime Mode |
| Includes | Thermostat |
| Characteristics | 15 Second Lockout Time, Sleek Modern Design, Replaces Honeywell R7184B, Limited Recycle/Limited Reset Minimizes The Number (2) of Times The Homeowner Can Hit The Reset Button, Communications Port Enables The Control to Communicate with Service Instruments, Security Systems or Data Acquisition Equipment, Includes Terminal Base and Transformer |
| Ignition Type | Intermittent Spark, Interrupted Spark |
| For Use With | Oil Burners |
| Compatible with Product Type | Oil Burners |
| Overall Height | 2 in |
| Standards | CSA Listed, UL Listed |
| Model Number | 7505B1500GU |
| Accessory Type | Oil Primary Control |
| Overall Width | 4 in |
| Amperage | 3 A |
| Overall Length | 4 in |
| Product Type | Controls |
| For Fuel Type | Oil |
| Voltage | 120 V |
| Country of Origin (subject to change) | Thailand |
| Package Quantity | 1 |
