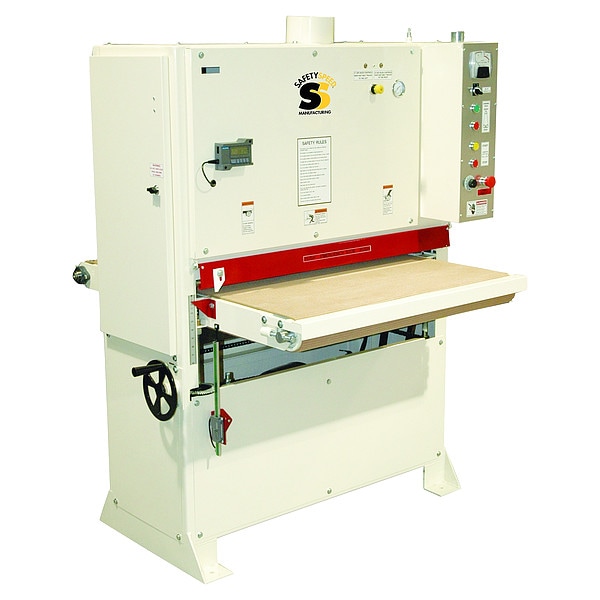

Wide Belt Sander, 10HP, 220V, 1Phase
| Item | Wide Belt Sander |
|---|---|
| HP | 10 HP |
| Belt Size | 37 in x 60 in |
| Voltage | 230 V |
| Phase | Single-Phase |
| Hz | 50/60 |
| Features | Available with Either A 10 hp Single Phase or A 15 hp Three Phase Motor |
| Amps | 41 |
| Max. Board Width | 36 in |
| Corded/Cordless | Corded |
| Includes | (2) 2 1/2 in OD Rubber Covered Pinch Rollers, (2) 4 1/4 in OD Machined Idler Rollers with 1 in Bearings, (2) Height Adjustment Indicators, (5) Emergency Stops, 2 1/2 in Graphite Covered Felt Pad and Adjustable Platen, 5 1/4 in OD Rubber-Covered Contact Roller with 1 5/8 in Drive Bearing, 6 in Internal Dust Chute, Conveyor Table Set, Photo Electric Belt Tracking, Pneumatic Belt Tensioning |
| Vacuum Requirement | 1,000 cfm |
| Max. Board Thickness | 7 1/4 in |
| Feed Speed | 0 to 18 FPM |
| Min. Board Thickness | 1/8 in |
| Min. Board Length | 12 in |
| Corded/Banded | Corded |
| Max. Board Length | Unlimited |
| Tool Weight | 1,362 lb |
| Tool Length | 50-1/2 in |
| Product Type | Wide Belt Sander |
| Belt Speed | 1,950 SFPM |
| Belt Width | 37 in |
| Tool Series | 3760 |
| Minimum Board Thickness | 1/8 in |
| Belt Speed Settings | Fixed |
| Maximum Board Width | 36 in |
| Power Source | Corded |
| Number of Belt Speeds | 1 |
| Horsepower | 10 |
| Minimum Board Length | 12 in |
| Current | 41 A |
| Maximum Feed Speed | 18 fpm |
| Feed Speed Settings | Variable |
| Minimum Feed Speed | 0 fpm |
| Dust Collection Port Size | 6 in |
| Number of Speeds | Not Applicable |
| Number of Feed Speeds | 0 |
| Belt Length | 60 in |
| Maximum Board Thickness | 7-1/4 in |
| Tool Width | 47 in |
| Tool Height | 63 in |
| Idler Drum Diameter | 2-3/16 in |
| Package Quantity | 1 |
