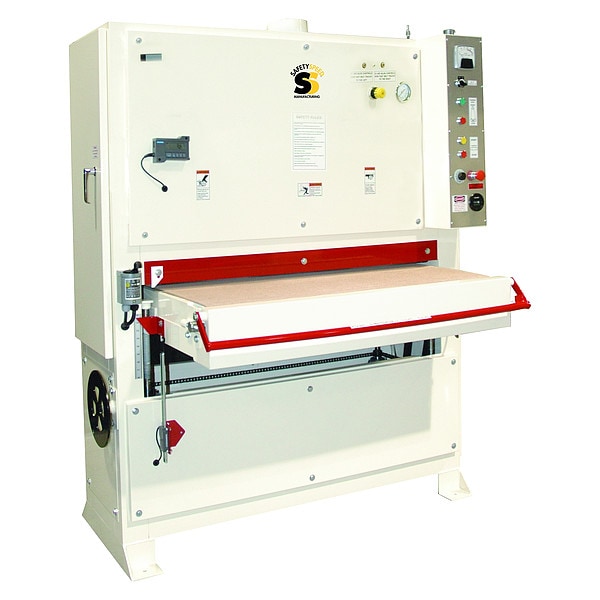

Wide Belt Sander, 20HP, 208/230/460V, 3Phs
| Item | Wide Belt Sander |
|---|---|
| HP | 20 HP |
| Belt Size | 43 in x 75 in |
| Voltage | 208/230V |
| Phase | Three-Phase |
| Features | 75 in Belt Has 25% More Abrasive Surface Than 60 in Belt Machines, The Larger Belt Translates to Increased Capacity, Less Heat Accumulation, Less Maintenance and Fewer Belt Replacements, with A Fully Adjustable Platen |
| Hz | 50/60 |
| Amps | 54/50/25 |
| Max. Board Width | 42 in |
| Corded/Cordless | Corded |
| Min. Board Length | 12 in |
| Max. Board Thickness | 7 1/4 in |
| Feed Speed | 0 to 18 FPM |
| Max. Board Length | Unlimited |
| Vacuum Requirement | 1,000 cfm |
| Corded/Banded | Corded |
| Min. Board Thickness | 1/8 in |
| Includes | (2) 1 1/2 in OD Rubber-Covered Pinch Rollers, (2) 2 3/16 in OD Machined Idler Rollers with 3/4 in Bearings, (2) Height Adjustment Indicators, (5) Emergency Stops, 2 1/2 in Removable Platen, 4 1/4 in OD Rubber-Covered Contact Roller with 1 3/8 in Drive Bearing, 6 in Internal Dust Chute, Conveyor Table Set, Photo Electric Belt Tracking, Pneumatic Belt Tensioning |
| Tool Weight | 1,946 lb |
| Tool Length | 53 in |
| Product Type | Wide Belt Sander |
| Number of Belt Speeds | 1 |
| Maximum Board Thickness | 7-1/4 in |
| Minimum Board Length | 12 in |
| Maximum Feed Speed | 18 fpm |
| Number of Speeds | Not Applicable |
| Belt Speed | 1,950 SFPM |
| Idler Drum Diameter | 4-1/4 in |
| Belt Length | 75 in |
| Current | 50 A |
| Belt Width | 43 in |
| Minimum Board Thickness | 1/8 in |
| Dust Collection Port Size | 6 in |
| Tool Width | 56 in |
| Number of Feed Speeds | 0 |
| Feed Speed Settings | Variable |
| Maximum Board Width | 42 in |
| Belt Speed Settings | Fixed |
| Horsepower | 20 |
| Tool Height | 70 in |
| Minimum Feed Speed | 0 fpm |
| Tool Series | 4375 |
| Power Source | Corded |
| Package Quantity | 1 |
