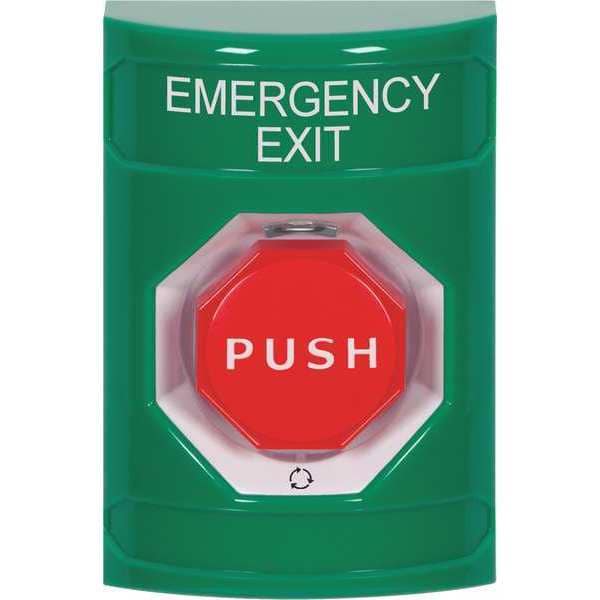

Botón de empuje de salida de emergencia, verde, SPDT
| Supports Touchless Operation | No |
|---|---|
| Color | Green |
| Button Diameter | 1-1/2 in |
| Item | Exit Push Button |
| Button Dia. | 1-1/2 in |
| Height | 4-7/8 in |
| Width | 3-1/4 in |
| Standards | UL and cUL Listed |
| Input Voltage | 125/250V AC, 30V DC |
| For Use With | Access Control, Emergency Systems |
| Amps AC | 10A @ 125 or 250V AC |
| Output | SPDT Relay |
| Cylinder | No |
| Keypad | No |
| Button Color | Red |
| Type | Turn-To-Reset |
| Material | Polycarbonate |
| Operating Temp. | -40 to 250 deg F |
| Includes | (2) Form C Contacts |
| Depth | 2-7/8 in |
| Switch Action | Latching |
| Event Audit Trail | No |
| Finish | Painted |
| Rating | 10A @ 125 or 250V AC, 6A @ 30V DC |
| ADA Compliant | Yes |
| Supports Operation Type | Push-Button Operation |
| Operating Temperature - Maximum | 250 deg F |
| Product Type | Push Button |
| Event Audit Trail Included | No |
| Output Type | DPDT Relay |
| Overall Depth | 3-3/16 in |
| Operating Temperature - Minimum | -40 deg F |
| Overall Width | 3-1/4 in |
| Overall Height | 4-7/8 in |
| Switch Action Type | Push Button |
| Compatible Product Type | Access Controls Systems |
| Package Quantity | 1 |
