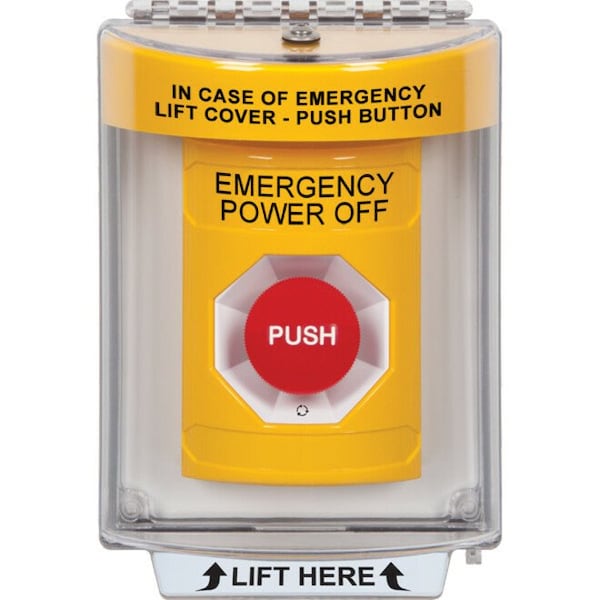

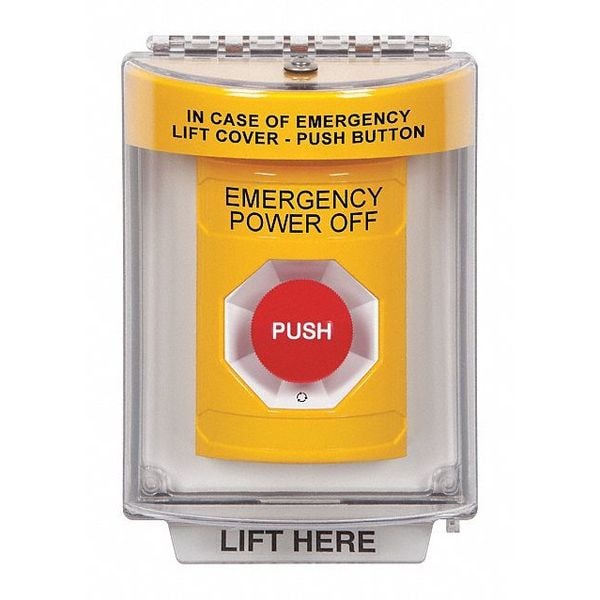

Botón de apagado de emergencia, 2-7/8" de diámetro.
| Color | Yellow |
|---|---|
| Item | Exit Push Button |
| Height | 4-7/8 in |
| Button Color | Red |
| Depth | 3-13/64 in |
| Rating | 1A @ 250V DC, 6A @ 600V AC |
| Material | Polycarbonate |
| Output | SPST Relay |
| Width | 3-1/4 in |
| ADA Compliant | Yes |
| Type | Turn-To-Reset |
| Standards | UL and cUL Listed |
| Switch Action | Push Button |
| Supports Touchless Operation | No |
| Input Voltage | 250V DC, 600V AC |
| Features | Flush Mount, Turn-to-Reset |
| Includes | (2) Contacts - 1 NO and 1 NC |
| Supports Operation Type | Push-Button Operation |
| Overall Height | 4-7/8 in |
| Overall Width | 3-1/4 in |
| Switch Action Type | Push Button |
| Overall Depth | 3-3/16 in |
| Output Type | SPST Relay |
| Operating Temperature - Maximum | 250 deg F |
| Compatible Product Type | Access Controls Systems |
| Operating Temperature - Minimum | -40 deg F |
| Product Type | Push Button |
| Package Quantity | 1 |
