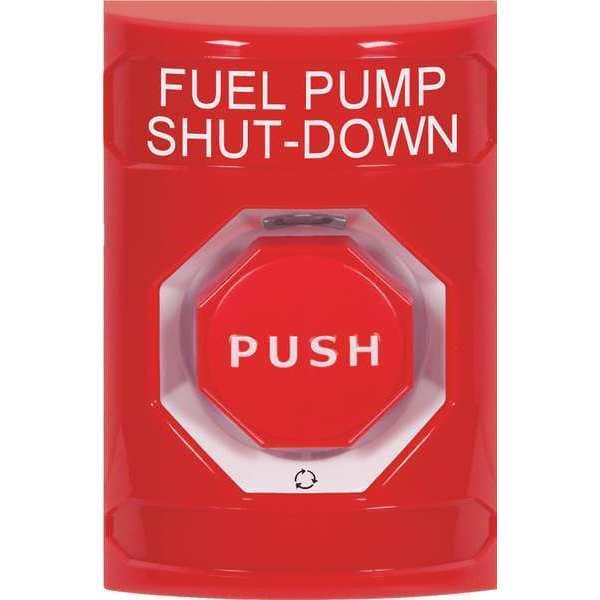

Botón de Apagado de la Bomba de Combustible, Rojo, SPDT (Doble Polo, Doble Tiro)
| Color | Red |
|---|---|
| Item | Fuel Pump Shutdown Push Button |
| For Use With | Access Control, Emergency Systems |
| Cylinder | No |
| Button Color | Red |
| Input Voltage | 125 to 250V AC, 30V DC |
| Switch Action | Turn-to-Reset |
| Rating | 10A @ 125 or 250V AC, 6A @ 30V DC |
| Includes | (2) Form "C" Contacts, 12 to 24V AC/DC LED Multicolor Illumination Bar |
| Depth | 2-7/8 in |
| Amps AC | 10A @125 or 250V AC |
| Output | SPDT Relay |
| Event Audit Trail | No |
| Finish | Painted |
| Height | 4-7/8 in |
| Button Dia. | 1-1/2 in |
| Keypad | No |
| Type | Turn-To-Reset |
| Standards | CSA C22.2 No. 205, UL 294 (Models Used with LT-1UL), UL and cUL Listed No. S7255 |
| Width | 3-1/4 in |
| Operating Temp. | -40 to 250 deg F |
| Material | Polycarbonate |
| Supports Touchless Operation | No |
| Exit Device Type | Not Applicable |
| Fire Rating | Not Applicable |
| ADA Compliant | Yes |
| Features | LED Illumination Bar Color Options: Red, Green, and White |
| Power Source | AC/DC Power |
| Supports Operation Type | Push-Button Operation |
| Overall Width | 3-1/4 in |
| Exit Bar Style | Not Applicable |
| Product Type | Push Button |
| Includes Hardware | Hardware Included |
| Operation Type | Push Button |
| Mortise/Cylindrical | Mortise |
| Operating Temperature - Minimum | -40 deg F |
| Operating Temperature - Maximum | 250 deg F |
| Event Audit Trails | Not Applicable |
| Operation Style | Manual |
| Overall Height | 4-7/8 in |
| Overall Depth | 3-3/16 in |
| Package Quantity | 1 |
