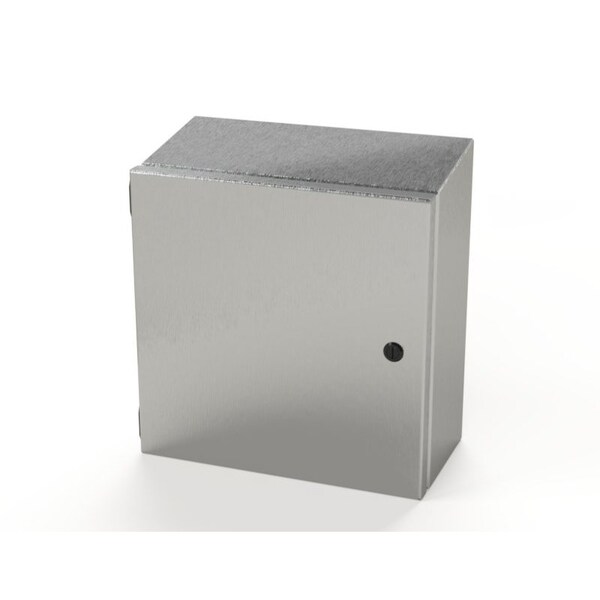

1/4 Turn Latch Electrical Enclosures, 12 in H, 6 in D, 12 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 12 in |
| Nominal Height | 12 in |
| Nominal Depth | 6 in |
| Closure Method | 1/4 Turn Latch |
| Metallic / Non-Metallic | Metallic |
| Finish | #4 Brushed |
| Enclosure NEMA Rating | NEMA 3R, 4, 4X, 12, 13 |
| IP Rating | IP66 |
| Enclosure Cover Type | Hinged |
| Standards | NEMA Type 3R, 4, 4X, 12 and Type 13; UL Listed Type 3R, 4, 4X and 12; CSA Type 4, 4X and 12; IEC 60529; IP 66 |
| Solid / Clear Cover | Solid |
| Material of Enclosure | Stainless Steel |
| Application | Designed to house electrical controls, instruments and components in areas which may be regularly hosed down or are in very wet or oily conditions. Provides protection from dust, dirt, oil, and water. For outdoor application a drip shield and drain vent is recommended |
| Package Quantity | 1 |
