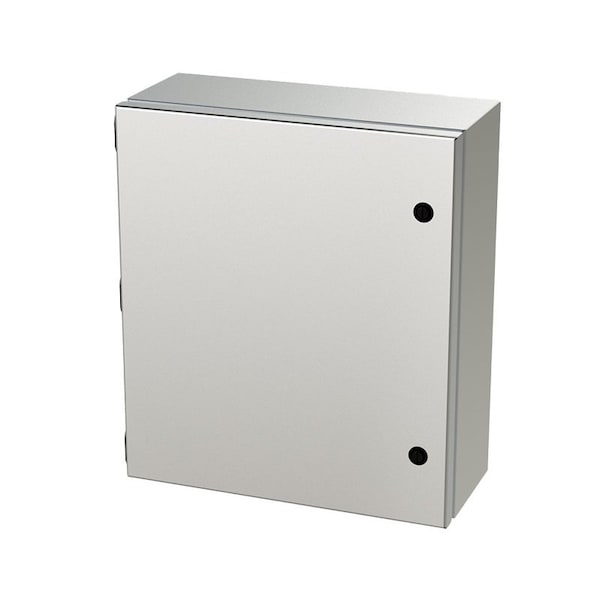

1/4 Turn Latch Electrical Enclosures, 16 in H, 6 in D, 14 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 14 in |
| Nominal Height | 16 in |
| Nominal Depth | 6 in |
| Closure Method | 1/4 Turn Latch |
| Metallic / Non-Metallic | Metallic |
| Finish | #4 Brushed |
| IP Rating | IP66 |
| Enclosure NEMA Rating | NEMA 3R, 4, 4X, 12, 13 |
| Standards | NEMA Type 3R, 4, 4X, 12 and Type 13; UL Listed Type 3R, 4, 4X and 12; CSA Type 4, 4X and 12; IEC 60529; IP 66 |
| Solid / Clear Cover | Solid |
| Enclosure Cover Type | Hinged |
| Material of Enclosure | 316 Stainless Steel |
| Application | Designed to house electrical controls, instruments and components in areas which may be regularly hosed down or are in very wet or oily conditions. Provides protection from dust, dirt, oil, and water. For outdoor applications a drip shield is recommended |
| Package Quantity | 1 |
