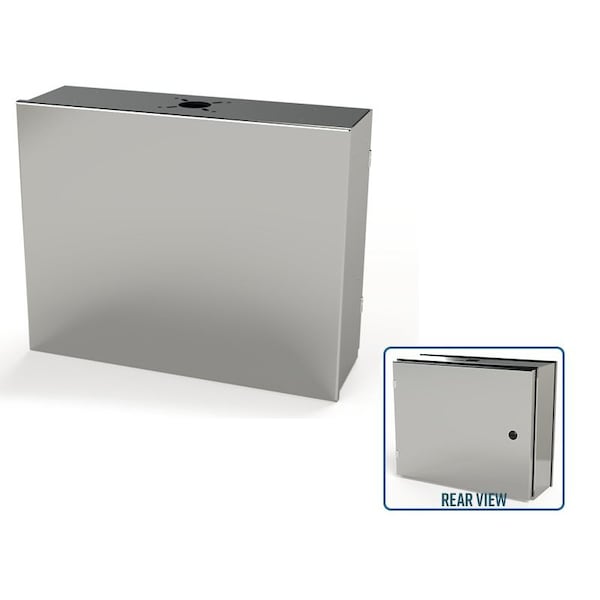

1/4 Turn Latch Electrical Enclosures, 16 in H, 6 in D, 20 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 16 in |
| Nominal Depth | 6 in |
| Closure Method | 1/4 Turn Latch |
| Metallic / Non-Metallic | Metallic |
| Finish | #4 Brushed |
| Mounting | Pedestal |
| Enclosure NEMA Rating | NEMA 3R, 4, 4X, 12, 13 |
| IP Rating | IP66 |
| Enclosure Cover Type | Hinged |
| Material of Enclosure | 304 Stainless Steel |
| Solid / Clear Cover | Solid |
| Standards | NEMA Type 3R, 4, 4X, 12 and Type 13; UL Listed Type 3R, 4, 4X and 12; CSA Type 4, 4X and 12; IEC 60529; IP 66 |
| Application | Designed to house Human-Machine Interfaces (HMI) and electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. |
| Package Quantity | 1 |
